Vous trouverez ici toutes les pièces et dessins disponibles du 'Makita GA5040'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

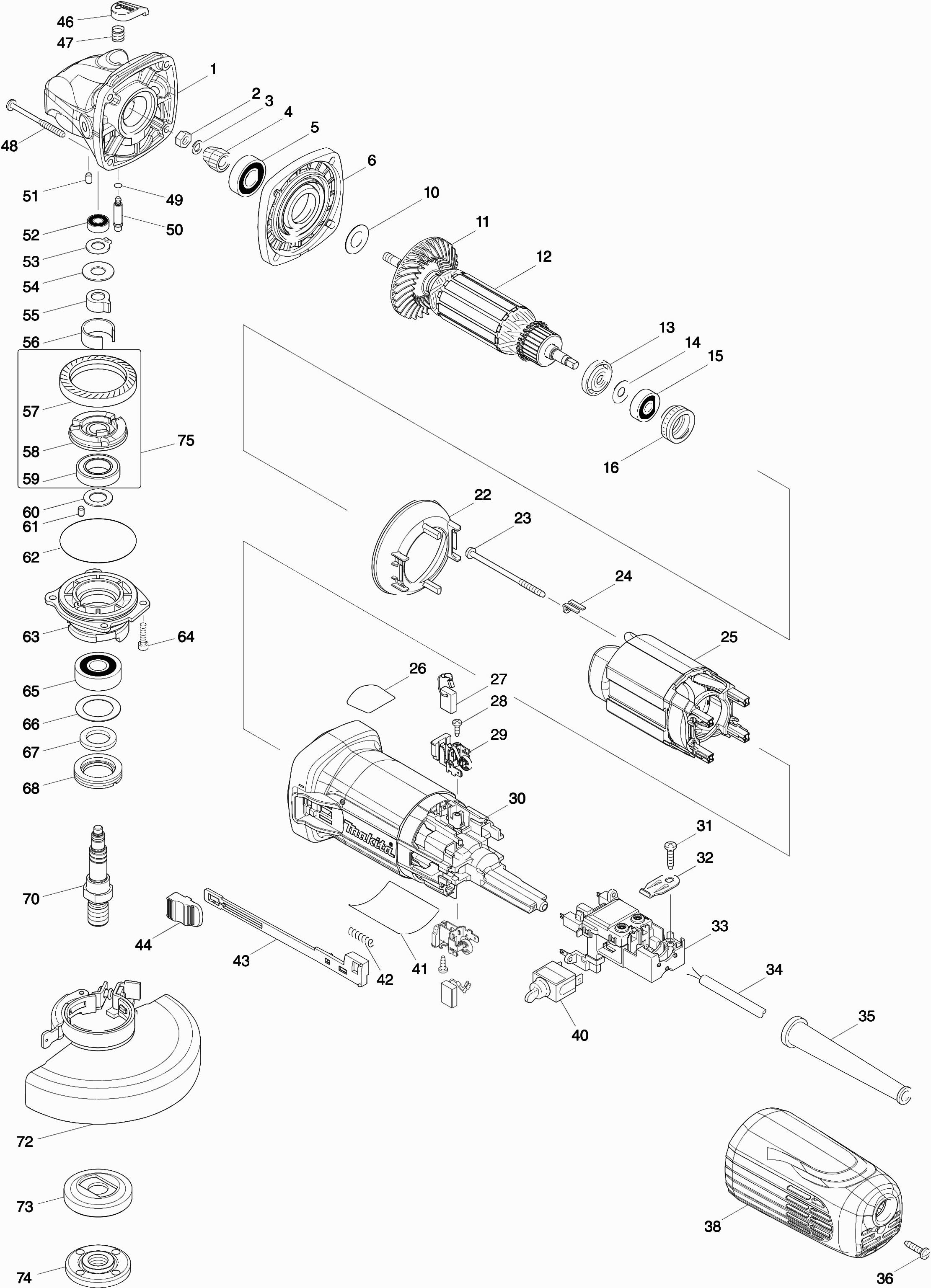

Dessins des Makita GA5040
Liste de pièces de rechange des Makita GA5040
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Tandwielhuis PC5010C/GAserie A | ||||
001 | 136013-6 | 14.90 | 17.88 | |
Moer M6 | ||||
002 | 252186-8 | 0.83 | 1.00 | |
Sluitring 6 | ||||
003 | 253077-6 | 0.83 | 1.00 | |
Tandwiel 11 | ||||
004 | 227591-8 | 6.08 | 7.30 | |
Kogellager 6001zz | ||||
005 | 211148-5 | 7.81 | 9.37 | |
Épuisé | ||||
006 | 318835-8 | |||
Sluitring 12 | ||||
010 | 253084-9 | 0.83 | 1.00 | |
Waaier 88 | ||||
011 | 240134-9 | 1.58 | 1.90 | |
Induit | ||||
012 | 515364-4 | 39.78 | 47.74 | |
Isolatiering | ||||
013 | 681656-4 | 0.83 | 1.00 | |
Sluitring 7 | ||||
014 | 253823-7 | 0.83 | 1.00 | |
Kogellager 627ddw | ||||
015 | 210045-2 | 2.98 | 3.58 | |
Épuisé | ||||
016 | 421738-8 | |||
Plaque Intermediaire | ||||
022 | 453367-9 | 1.32 | 1.58 | |
Tapschroef 4x70 | ||||
023 | 266258-3 | 0.83 | 1.00 | |
Plateau De Retenue | ||||
024 | 344871-8 | 0.83 | 1.00 | |
Inducteur | ||||
025 | 626649-4 | 24.14 | 28.97 | |
Label "sjs2" | ||||
026 | 898443-6 | 2.58 | 3.10 | |
Koolborstel set Cb-325 | ||||
027 | 194074-2 | 1.92 | 2.30 | |
Tapschroef Pt3x10 | ||||
028 | 266007-8 | 0.83 | 1.00 | |
S/e Porte Balais | ||||
029 | 643770-4 | 1.32 | 1.58 | |
Carter De Moteur | ||||
030 | 453366-1 | 9.22 | 11.06 | |
Tapschroef 4x18 | ||||
031 | 266326-2 | 0.83 | 1.00 | |
Trekontlaster | ||||
032 | 687169-3 | 0.83 | 1.00 | |
033 | 632L23-8 | 7.81 | 9.37 | |
Netsnoer 2x1.50 4.0mtr | ||||
034 | 695123-3 | 20.08 | 24.10 | |
Kabeltule 10 | ||||
035 | 682566-8 | 1.12 | 1.34 | |
Tapschroef 4x18 | ||||
036 | 266326-2 | 0.83 | 1.00 | |
Achterdeksel | ||||
038 | 453364-5 | 3.28 | 3.94 | |
Épuisé | ||||
040 | 651428-1 | |||
Étiquette | ||||
041 | 897060-9 | 2.58 | 3.10 | |
Drukveer 4 | ||||
042 | 233071-4 | 0.83 | 1.00 | |
Schakelaarhandel | ||||
043 | 453847-5 | 0.83 | 1.00 | |
Schakelaarknop Ga5040C | ||||
044 | 453368-7 | 0.83 | 1.00 | |
Pinkap | ||||
046 | 453369-5 | 0.83 | 1.00 | |
Drukveer 8 | ||||
047 | 234057-1 | 0.83 | 1.00 | |
Tapschroef 4x30mm | ||||
048 | 266361-0 | 0.83 | 1.00 | |
O-ring 4 | ||||
049 | 213032-0 | 0.83 | 1.00 | |
Kraagpin 6mm | ||||
050 | 256535-1 | 0.83 | 1.00 | |
Rubber pen 4 | ||||
051 | 263002-9 | 0.83 | 1.00 | |
Kogellager 696ZZ A | ||||
052 | 210026-6 | 3.37 | 4.04 | |
Borgring S-9 | ||||
053 | 961005-4 | 0.83 | 1.00 | |
Sluitring 10 | ||||
054 | 253180-3 | 0.94 | 1.13 | |
Épuisé | ||||
055 | 310508-9 | |||
Anneau de retenue | ||||
056 | 346556-2 | 2.26 | 2.71 | |
Tandwiel 11 | ||||
057 | 227592-6 | 5.44 | 6.53 | |
Embrayage | ||||
058 | 313228-4 | 10.00 | 12.00 | |
Kogellager 6903zz | ||||
059 | 210302-8 | 7.81 | 9.37 | |
Sluitring 12 | ||||
060 | 253744-3 | 0.83 | 1.00 | |
Rubber pen 4 | ||||
061 | 263002-9 | 0.83 | 1.00 | |
O-ring 51 | ||||
062 | 213641-5 | 0.83 | 1.00 | |
Lagerhuis | ||||
063 | 136012-8 | 6.86 | 8.23 | |
Inbusbout 4x16 | ||||
064 | 266437-3 | 0.83 | 1.00 | |
Kogellager 6201dw1 | ||||
065 | 211129-9 | 6.88 | 8.26 | |
Sluitring 21 | ||||
066 | 267279-8 | 0.83 | 1.00 | |
Viltenring 17mm | ||||
067 | 443124-3 | 0.83 | 1.00 | |
Lagerborging | ||||
068 | 285854-8 | 1.12 | 1.34 | |
Arbre | ||||
070 | 326130-2 | 5.44 | 6.53 | |
Beschermkap 125 mm afbramen en schuren | ||||
072 | 123145-8 | 8.00 | 9.60 | |
O-ring 4 | ||||
072A | 213009-5 | 0.83 | 1.00 | |
Schroef 5x16 | ||||
072B | 265180-1 | 0.83 | 1.00 | |
Binnenflens 42mm | ||||
073 | 224415-9 | 4.25 | 5.10 | |
Sluitmoer M14x45mm | ||||
074 | 224554-5 | 4.75 | 5.70 |
