Vous trouverez ici toutes les pièces et dessins disponibles du 'Makita GA7012C'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

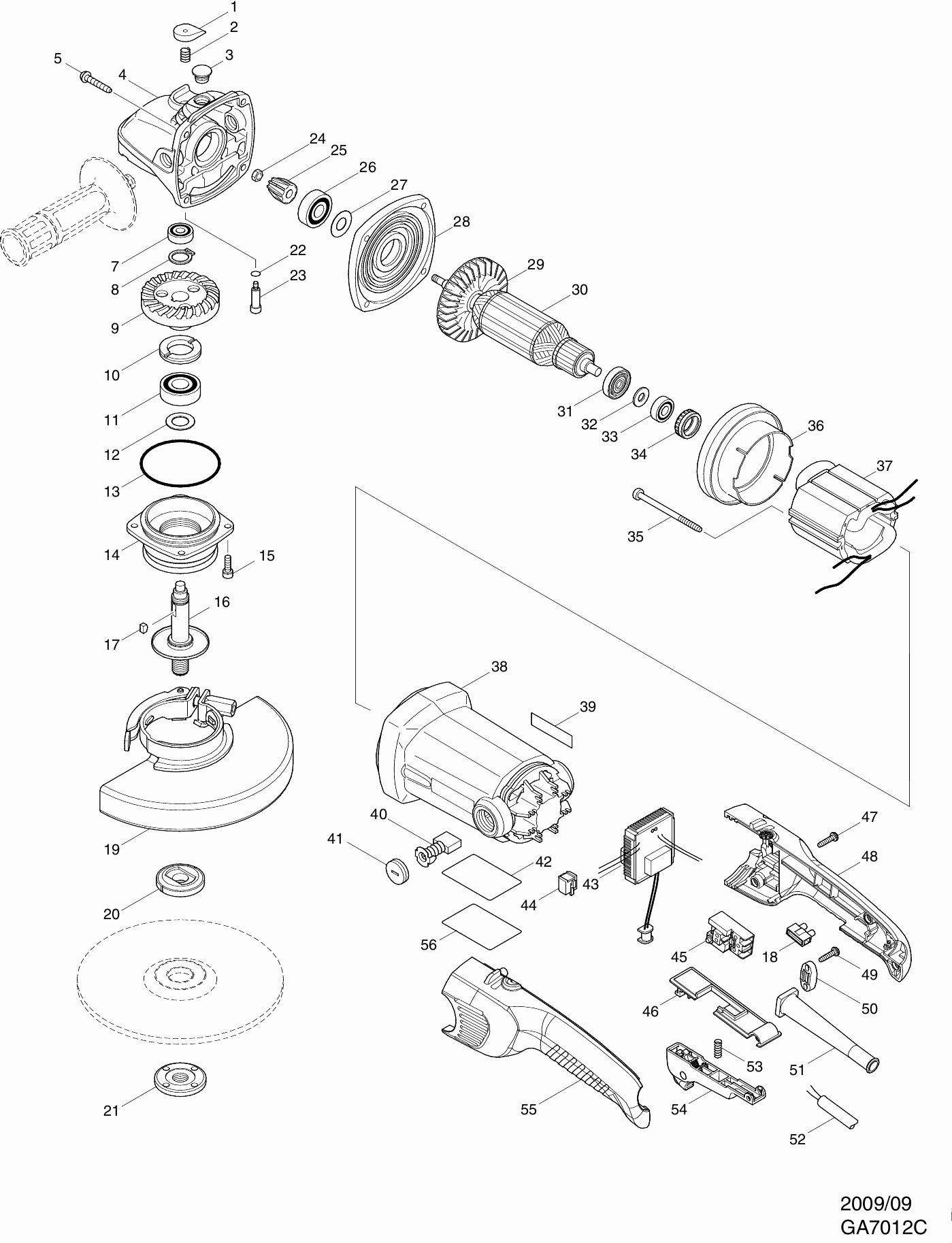

Dessins des Makita GA7012C
Liste de pièces de rechange des Makita GA7012C
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Pin kap | ||||
001 | 418517-3@141 | 0.83 | 1.00 | |
Drukveer 7 | ||||
002 | 231037-8@141 | 0.83 | 1.00 | |
Capot de recouvrement | ||||
003 | 416972-3@141 | 1.02 | 1.22 | |
Pas d'informations disponibles, non commandable | ||||
004 | 317752-9@141 | |||
Tapschroef 5x30mm | ||||
005 | 266553-1@141 | 0.83 | 1.00 | |
Kogellager 608llb | ||||
007 | 210043-6@141 | 1.72 | 2.06 | |
Borgring S-15 | ||||
008 | 961055-9@141 | 0.83 | 1.00 | |
Tandwiel 37 | ||||
009 | 227459-8@141 | 43.02 | 51.62 | |
Lagerborging 23-36 Ga7010 | ||||
010 | 285809-3@141 | 2.16 | 2.59 | |
Kogellager 6202llb | ||||
011 | 211228-7@141 | 7.44 | 8.93 | |
Sluitring 15 Btw200 | ||||
012 | 267215-4@141 | 0.83 | 1.00 | |
O-ring 67 | ||||
013 | 213720-9@141 | 1.72 | 2.06 | |
Logement De Palier | ||||
014 | 318376-4@141 | 8.84 | 10.61 | |
Inbusbout 5x16 | ||||
015 | 922221-3@141 | 0.83 | 1.00 | |
As Ga9010C | ||||
016 | 153785-8@141 | 8.84 | 10.61 | |
Inlegspie 4 | ||||
017 | 254011-9@141 | 0.83 | 1.00 | |
Kroonsteen Bo4553-Bo4554 A | ||||
018 | 654475-1@141 | 0.83 | 1.00 | |
Beschermkap 180Mm Tooll A | ||||
019 | 141P38-3@141 | 10.56 | 12.67 | |
Binnenflens "super" | ||||
020A | 192227-7@141 | 16.73 | 20.08 | |
Sluitmoer M14x45mm | ||||
021 | 224554-5@141 | 3.73 | 4.48 | |
O-ring 7 | ||||
022 | 213026-5@141 | 0.83 | 1.00 | |
Pen 7 | ||||
023 | 256483-4@141 | 0.83 | 1.00 | |
Moer M6 DVC660 | ||||
024 | 252268-6@141 | 0.83 | 1.00 | |
Tandwiel 11 | ||||
025 | 227458-0@141 | 27.35 | 32.82 | |
Kogellager 6201llb | ||||
026 | 211106-1@141 | 5.22 | 6.26 | |
Sluitring 12 | ||||
027 | 253759-0@141 | 0.83 | 1.00 | |
Carter | ||||
028 | 317753-7@141 | 6.58 | 7.90 | |
Waaier 76 | ||||
029 | 240070-9@141 | 3.22 | 3.86 | |
Induit | ||||
030 | 513568-2@141 | 37.12 | 44.54 | |
Isolatiering | ||||
031 | 681660-3@141 | 6.60 | 7.92 | |
Sluitring 8 | ||||
032 | 267281-1@141 | 0.83 | 1.00 | |
Kogellager 608ddw | ||||
033 | 210005-4@141 | 4.58 | 5.50 | |
Plaq.en Caoutchouc (1) | ||||
034 | 421720-7@141 | 6.58 | 7.90 | |
Tapschroef 5x75mm | ||||
035 | 266386-4@141 | 0.83 | 1.00 | |
Plaque Intermediaire | ||||
036 | 418516-5@141 | 1.51 | 1.81 | |
Inducteur | ||||
037 | 625824-9@141 | 31.62 | 37.94 | |
Statorveer | ||||
037A | 654197-3@141 | 0.83 | 1.00 | |
Klembus tbv statorv. 2mm | ||||
037B | 654502-4@141 | 0.83 | 1.00 | |
Carter De Moteur | ||||
038 | 153786-6@141 | 11.68 | 14.02 | |
S/e Porte Balais | ||||
038A | 643712-8@141 | 7.44 | 8.93 | |
Pas d'informations disponibles, non commandable | ||||
039 | 819394-0@141 | |||
Koolborstel set Cb-204 | ||||
040 | 191957-7@141 | 11.16 | 13.39 | |
Koolborstelhouderdop | ||||
041 | 643700-5@141 | 1.01 | 1.21 | |
Pas d'informations disponibles, non commandable | ||||
042 | 867632-4@141 | |||
Toerenregelcircuit | ||||
043 | 631950-4@141 | 37.12 | 44.54 | |
Pas d'informations disponibles, non commandable | ||||
043-1 | 620G03-6@141 | |||
Douille | ||||
044 | 418518-1@141 | 0.83 | 1.00 | |
Schakelaar Sw-131 | ||||
045 | 651922-3@141 | 11.16 | 13.39 | |
Schakelbasis | ||||
046 | 451637-0@141 | 2.80 | 3.36 | |
Tapschroef 4x18 | ||||
047 | 265A48-7@141 | 0.90 | 1.08 | |
Handgreep set | ||||
048 | 188826-1@141 | 9.96 | 11.95 | |
Lentille | ||||
048A | 450184-8@141 | 0.83 | 1.00 | |
Tapschroef 4x18 | ||||
049 | 265A48-7@141 | 0.90 | 1.08 | |
Klemstrip | ||||
050 | 687124-5@141 | 0.83 | 1.00 | |
Kabeltule 10 | ||||
051 | 682573-1@141 | 1.43 | 1.72 | |
Netsnoer 2x1.50 4.0mtr | ||||
052 | 695123-3@141 | 21.70 | 26.04 | |
Drukveer 6x29mm | ||||
053 | 233117-6@141 | 0.83 | 1.00 | |
Schakelaarhandel | ||||
054 | 140358-6@141 | 5.22 | 6.26 | |
Handgreep set | ||||
055 | 188826-1@141 | 9.96 | 11.95 | |
Lentille | ||||
055 | 450184-8@141 | 0.83 | 1.00 | |
Pas d'informations disponibles, non commandable | ||||
056 | 819395-8@141 |
