Vous trouverez ici toutes les pièces et dessins disponibles du 'Makita GD0801C'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

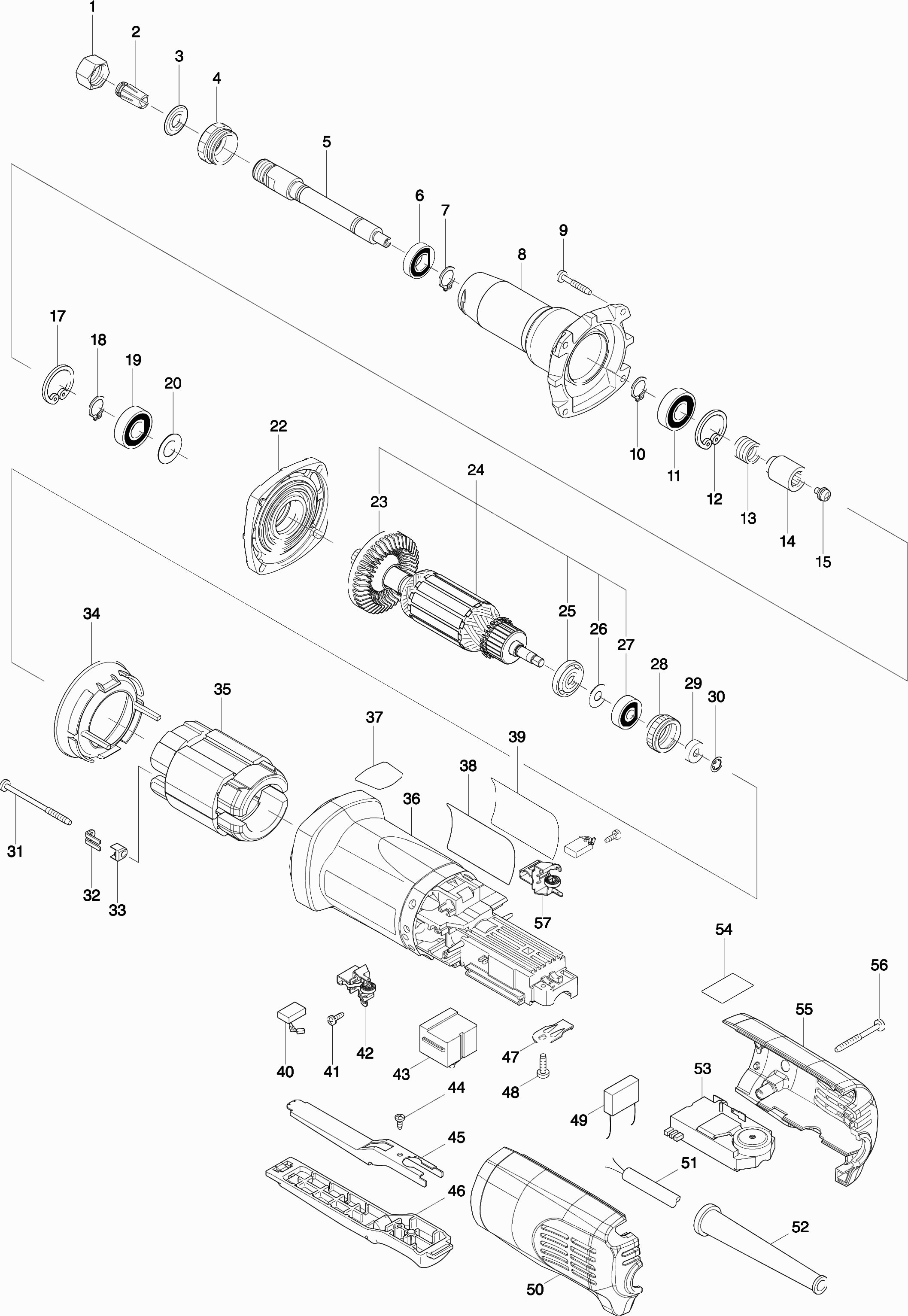

Dessins des Makita GD0801C
Liste de pièces de rechange des Makita GD0801C
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Spanmoer rechte slijper | ||||
001 | 763645-2@141 | 2.21 | 2.65 | |
Pas d'informations disponibles, non commandable | ||||
002 | 763646-0@141 | |||
Keerring 16 | ||||
003 | 213209-7@141 | 3.55 | 4.26 | |
Lagerborging | ||||
004 | 285700-5@141 | 9.52 | 11.42 | |
Arbre | ||||
005 | 324042-3@141 | 26.11 | 31.33 | |
Kogellager 6901llb | ||||
006 | 211141-9@141 | 6.58 | 7.90 | |
Borgring S-12 | ||||
007 | 961052-5@141 | 0.83 | 1.00 | |
Logement De Palier | ||||
008 | 317368-0@141 | 48.51 | 58.21 | |
Tapschroef 4x25 | ||||
009 | 265999-8@141 | 0.83 | 1.00 | |
Borgring S-12 | ||||
010 | 961052-5@141 | 0.83 | 1.00 | |
Kogellager 6001zz | ||||
011 | 211148-5@141 | 8.46 | 10.15 | |
Borgring R-28 | ||||
012 | 962106-1@141 | 0.83 | 1.00 | |
Borgveer 12 | ||||
013 | 233901-9@141 | 2.80 | 3.36 | |
Embrayage | ||||
014 | 323989-8@141 | 16.84 | 20.21 | |
Kruiskopschroef 4x8 | ||||
015 | 265082-1@141 | 0.83 | 1.00 | |
Borgring R-28 | ||||
017 | 962106-1@141 | 0.83 | 1.00 | |
Borgring S-12 | ||||
018 | 961052-5@141 | 0.83 | 1.00 | |
Kogellager 6001zz | ||||
019 | 211148-5@141 | 8.46 | 10.15 | |
Sluitring 12 | ||||
020 | 253084-9@141 | 0.83 | 1.00 | |
Logement De Palier | ||||
022 | 317367-2@141 | 14.23 | 17.08 | |
Waaier 57 | ||||
023 | 240036-9@141 | 4.81 | 5.77 | |
Anker 240V Gd0801C A | ||||
024 | 510306-3@141 | 41.78 | 50.14 | |
Isolatiering | ||||
025 | 681656-4@141 | 0.83 | 1.00 | |
Sluitring 7 | ||||
026 | 253823-7@141 | 0.83 | 1.00 | |
Kogellager 627ddw | ||||
027 | 210045-2@141 | 3.22 | 3.86 | |
Labyrint ring | ||||
028 | 421770-2@141 | 7.80 | 9.36 | |
Magnetische Bus Rt0700 A | ||||
029 | 688117-5@141 | 2.80 | 3.36 | |
Anneau de retenue | ||||
030 | 259039-2@141 | 0.83 | 1.00 | |
Tapschroef 4x60 | ||||
031 | 266259-1@141 | 0.83 | 1.00 | |
Plateau De Retenue | ||||
032 | 344871-8@141 | 0.83 | 1.00 | |
Isolatiedeksel | ||||
033 | 417237-6@141 | 0.83 | 1.00 | |
Plaque Intermediaire | ||||
034 | 455367-5@141 | 2.44 | 2.93 | |
Veld 240v | ||||
035 | 626669-8@141 | 26.11 | 31.33 | |
Pas d'informations disponibles, non commandable | ||||
035-1 | 621B54-2@141 | |||
Carter De Moteur | ||||
036 | 455358-6@141 | 5.88 | 7.06 | |
Label "sjs" | ||||
037 | 813900-3@141 | 2.80 | 3.36 | |
Naamplaat "gd0801c" | ||||
038 | 850F20-8@141 | 2.80 | 3.36 | |
Pas d'informations disponibles, non commandable | ||||
039 | 819356-8@141 | |||
Kooborstelset CB-318 | ||||
040 | 191978-9@141 | 8.46 | 10.15 | |
Zelftapper Pt 3x10 | ||||
041 | 266256-7@141 | 0.83 | 1.00 | |
S/e Porte Balais | ||||
042 | 643760-7@141 | 3.22 | 3.86 | |
Schakelaar GA5050 A | ||||
043 | 651396-8@141 | 10.81 | 12.97 | |
Tapschroef Pt3X8 | ||||
044 | 265954-0@141 | 0.83 | 1.00 | |
Tole De Commutation | ||||
045 | 345504-8@141 | 1.21 | 1.45 | |
Bouton De Commande | ||||
046 | 154584-1@141 | 2.16 | 2.59 | |
Trekontlaster | ||||
047 | 687169-3@141 | 0.83 | 1.00 | |
Tapschroef 4X14 Ga7020 A | ||||
048 | 266385-6@141 | 0.83 | 1.00 | |
Ontstorings condensator | ||||
049 | 645089-7@141 | 0.83 | 1.00 | |
Couvercle | ||||
050 | 188365-1@141 | 3.22 | 3.86 | |
Netsnoer 2x1.00 2.2mtr | ||||
051 | 665383-1@141 | 10.81 | 12.97 | |
Kabeltule 8-110 | ||||
052 | 682559-5@141 | 0.83 | 1.00 | |
Toerenregelcircuit | ||||
053 | 620340-6@141 | 57.06 | 68.47 | |
Indicatie label "gd0801c" | ||||
054 | 804Y15-7@141 | 2.80 | 3.36 | |
Couvercle | ||||
055 | 188365-1@141 | 3.22 | 3.86 | |
Tapschroef 4x40 | ||||
056 | 266048-4@141 | 0.83 | 1.00 | |
S/e Porte Balais | ||||
057 | 643771-2@141 | 5.87 | 7.04 |
