Vous trouverez ici toutes les pièces et dessins disponibles du 'Makita GD0810C'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

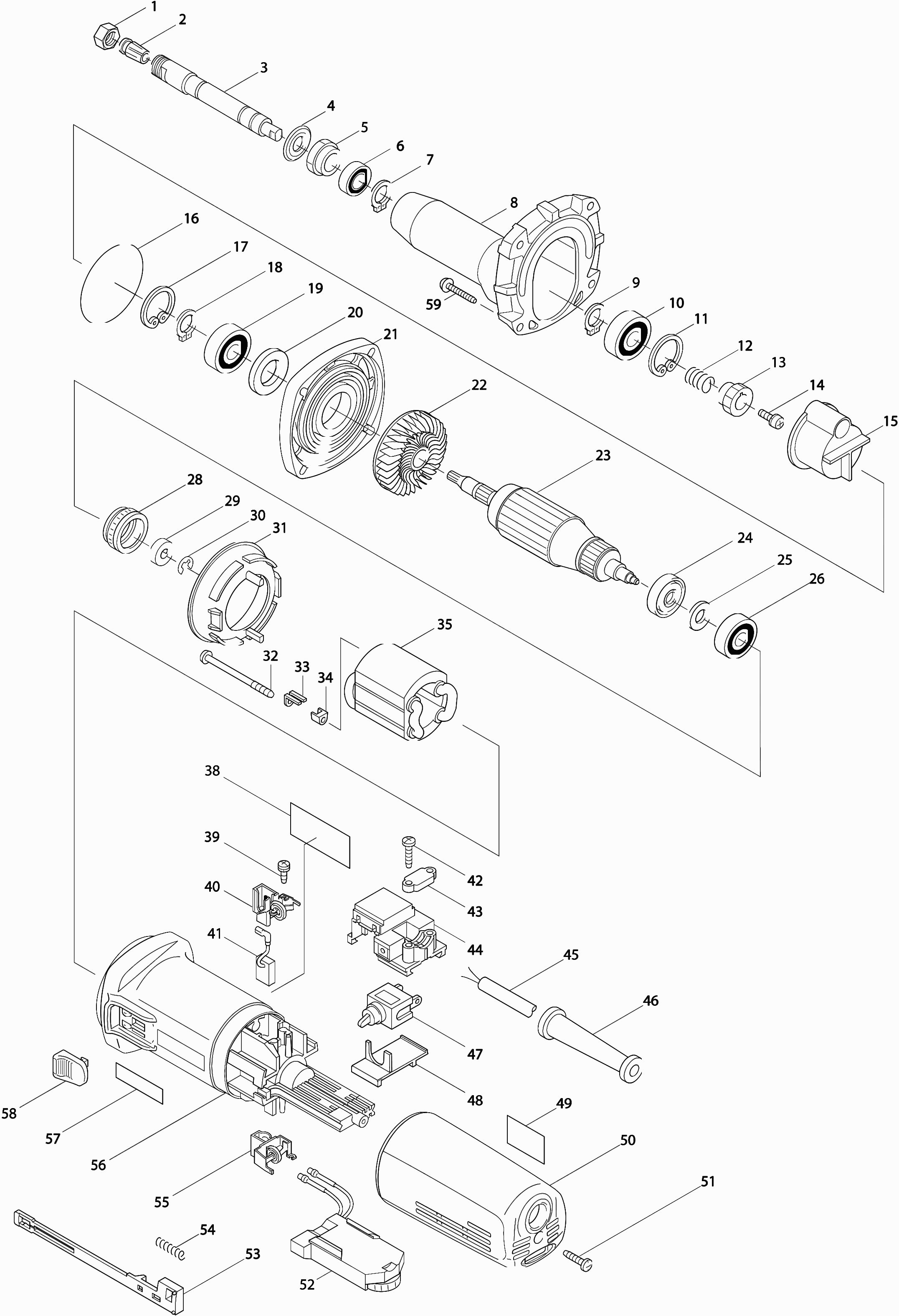

Dessins des Makita GD0810C
Liste de pièces de rechange des Makita GD0810C
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Spanmoer rechte slijper | ||||
001 | 763645-2@141 | 2.21 | 2.65 | |
Spantangset 6mm rechte slijper | ||||
002 | 193012-1@141 | 18.25 | 21.90 | |
Arbre | ||||
003 | 324042-3@141 | 26.11 | 31.33 | |
Keerring 16 | ||||
004 | 213209-7@141 | 3.55 | 4.26 | |
Lagerborging | ||||
005 | 285700-5@141 | 9.52 | 11.42 | |
Kogellager 6901llb | ||||
006 | 211141-9@141 | 6.58 | 7.90 | |
Borgring S-12 | ||||
007 | 961052-5@141 | 0.83 | 1.00 | |
Logement De Palier | ||||
008 | 317369-8@141 | 61.09 | 73.31 | |
Borgring S-12 | ||||
009 | 961052-5@141 | 0.83 | 1.00 | |
Kogellager 6001zz | ||||
010 | 211148-5@141 | 8.46 | 10.15 | |
Borgring S-28 | ||||
011 | 961108-4@141 | 1.01 | 1.21 | |
Borgveer 12 | ||||
012 | 233901-9@141 | 2.80 | 3.36 | |
Tandwiel 25 | ||||
013 | 226531-3@141 | 16.84 | 20.21 | |
Kruiskopschroef 4x8 | ||||
014 | 265082-1@141 | 0.83 | 1.00 | |
Couvercle d'engrenages | ||||
015 | 417363-1@141 | 4.08 | 4.90 | |
O-ring 46 | ||||
016 | 213611-4@141 | 0.83 | 1.00 | |
Borgring S-28 | ||||
017 | 961108-4@141 | 1.01 | 1.21 | |
Borgring S-12 | ||||
018 | 961052-5@141 | 0.83 | 1.00 | |
Kogellager 6001zz | ||||
019 | 211148-5@141 | 8.46 | 10.15 | |
Sluitring 12 | ||||
020 | 253084-9@141 | 0.83 | 1.00 | |
Logement De Palier | ||||
021 | 317367-2@141 | 14.23 | 17.08 | |
Waaier 57 | ||||
022 | 240036-9@141 | 4.81 | 5.77 | |
Induit | ||||
023 | 515214-3@141 | 65.59 | 78.71 | |
Isolatiering | ||||
024 | 681656-4@141 | 0.83 | 1.00 | |
Sluitring 7 | ||||
025 | 253823-7@141 | 0.83 | 1.00 | |
Kogellager 627ddw | ||||
026 | 210045-2@141 | 3.22 | 3.86 | |
Labyrint ring | ||||
028 | 421770-2@141 | 7.80 | 9.36 | |
Magnetische Bus Rt0700 A | ||||
029 | 688117-5@141 | 2.80 | 3.36 | |
Stopring E-4 | ||||
030 | 961011-9@141 | 0.83 | 1.00 | |
Plaque Intermediaire | ||||
031 | 413076-2@141 | 1.43 | 1.72 | |
Tapschroef 4x60 | ||||
032 | 266259-1@141 | 0.83 | 1.00 | |
Plateau De Retenue | ||||
033 | 344871-8@141 | 0.83 | 1.00 | |
Isolatiedeksel | ||||
034 | 417237-6@141 | 0.83 | 1.00 | |
Inducteur | ||||
035 | 626529-4@141 | 31.10 | 37.32 | |
Pas d'informations disponibles, non commandable | ||||
035-1 | 621B79-6@141 | |||
Zelftapper Pt 3x10 | ||||
039 | 266256-7@141 | 0.83 | 1.00 | |
S/e Porte Balais | ||||
040 | 643760-7@141 | 3.22 | 3.86 | |
Kooborstelset CB-318 | ||||
041 | 191978-9@141 | 8.46 | 10.15 | |
Tapschroef 4x18 | ||||
042 | 265A48-7@141 | 0.90 | 1.08 | |
Klemstrip | ||||
043 | 687053-2@141 | 0.83 | 1.00 | |
Schakelaarhouder | ||||
044 | 632945-0@141 | 9.52 | 11.42 | |
Netsnoer 2x1.00 2.2mtr | ||||
045 | 665383-1@141 | 10.81 | 12.97 | |
Kabeltule 8-110 | ||||
046 | 682559-5@141 | 0.83 | 1.00 | |
Pas d'informations disponibles, non commandable | ||||
047 | 651428-1@141 | |||
Schakelaar afdekkap | ||||
048 | 687113-0@141 | 0.83 | 1.00 | |
Achterdeksel | ||||
050 | 417185-9@141 | 8.46 | 10.15 | |
Tapschroef 4x18 | ||||
051 | 265A48-7@141 | 0.90 | 1.08 | |
Electronische regelaar | ||||
052 | 631391-4@141 | 65.59 | 78.71 | |
Schakelaarstang | ||||
053 | 417187-5@141 | 2.08 | 2.50 | |
Drukveer 4 | ||||
054 | 233071-4@141 | 0.83 | 1.00 | |
S/e Porte Balais | ||||
055 | 643974-8@141 | 5.22 | 6.26 | |
Carter De Moteur | ||||
056 | 417812-8@141 | 14.23 | 17.08 | |
Pas d'informations disponibles, non commandable | ||||
057 | 819720-3@141 | |||
Bouton De Commande | ||||
058 | 417813-6@141 | 0.83 | 1.00 | |
Tapschroef 4x25 | ||||
059 | 265999-8@141 | 0.83 | 1.00 |
