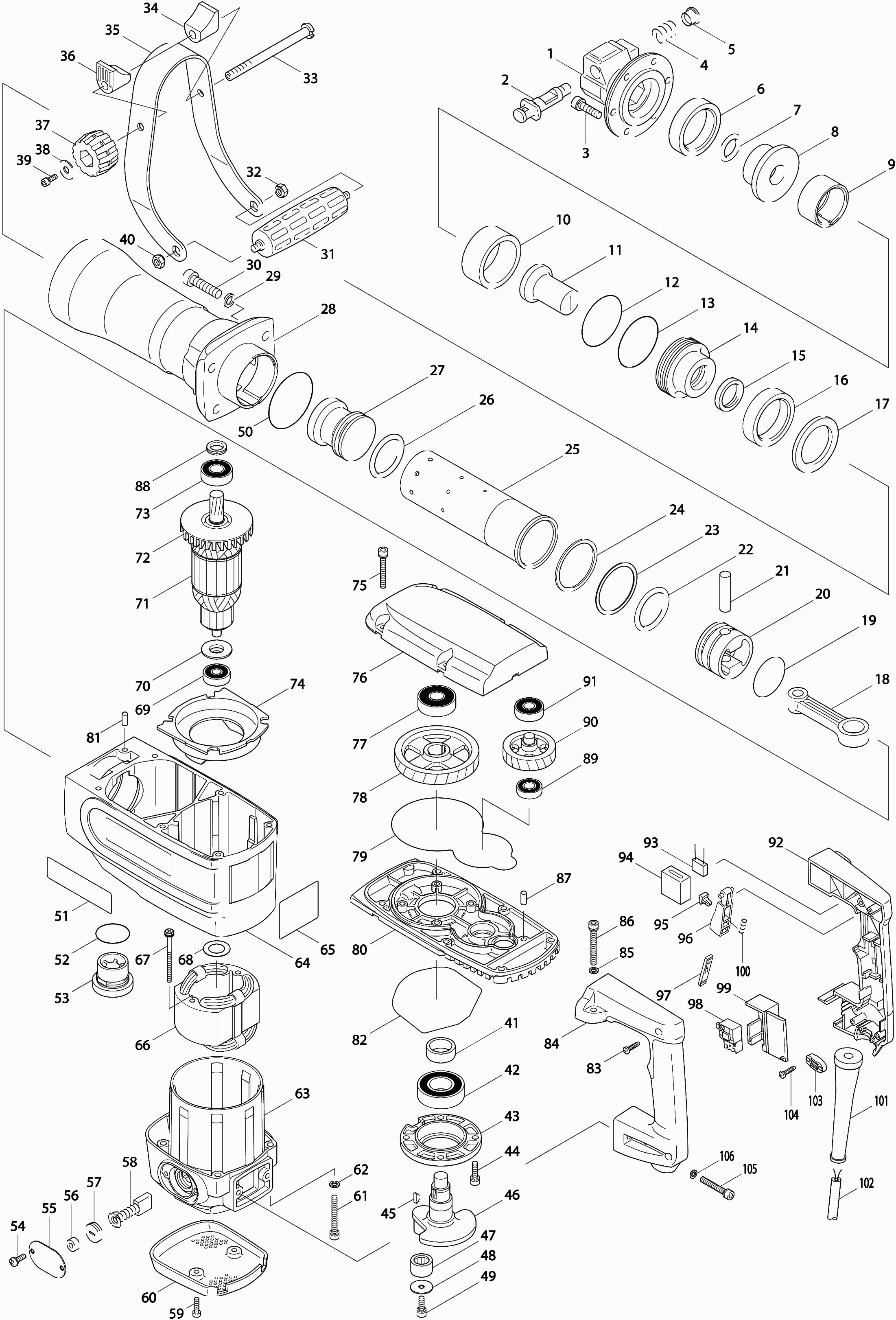

Dessins des Makita HM1304
Liste de pièces de rechange des Makita HM1304
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Porte-foret | ||||
001 | 324098-6 | 94.82 | 113.78 | |
Gereedschapklem | ||||
002 | 324099-4 | 4.08 | 4.90 | |
Inbusbout M8x30 | ||||
003 | 266010-9 | 1.72 | 2.06 | |
Drukveer 16 | ||||
004 | 233309-7 | 1.72 | 2.06 | |
Bus voor blokkeerpen | ||||
005 | 324135-6 | 5.22 | 6.26 | |
Urethaan ring 48 | ||||
006 | 262098-7 | 11.16 | 13.39 | |
O-ring 24 | ||||
007* | 213388-1 | 2.93 | 3.52 | |
Boorgeleider | ||||
008 | 324167-3 | 20.76 | 24.91 | |
Vangring | ||||
009 | 324166-5 | 17.90 | 21.48 | |
Rubber ring 52 | ||||
010 | 262099-5 | 4.08 | 4.90 | |
Percuteur | ||||
011 | 324101-3 | 19.80 | 23.76 | |
O-ring 61 | ||||
012 | 213721-7 | 6.58 | 7.90 | |
O-ring 61 | ||||
013 | 213721-7 | 6.58 | 7.90 | |
Épuisé | ||||
014 | 324165-7 | |||
X-ring 30 | ||||
015* | 213443-9 | 11.32 | 13.58 | |
Urethaan ring 48 | ||||
016 | 262098-7 | 11.16 | 13.39 | |
Sluitring 48 | ||||
017 | 267232-4 | 10.81 | 12.97 | |
Verbindingsstang | ||||
018 | 317448-2 | 39.92 | 47.90 | |
O-ring 47 | ||||
019* | 213617-2 | 1.01 | 1.21 | |
Piston | ||||
020 | 317447-4 | 27.35 | 32.82 | |
Zuigerpen 12 | ||||
021 | 268066-8 | 3.65 | 4.38 | |
O-ring 44 | ||||
022* | 213572-8 | 4.58 | 5.50 | |
Sluitring 55 | ||||
023 | 267233-2 | 2.56 | 3.07 | |
Kunststof ring 55 | ||||
024 | 261121-5 | 1.43 | 1.72 | |
Cilinder 54 | ||||
025 | 331600-8 | 149.79 | 179.75 | |
O-ring 44 | ||||
026* | 213572-8 | 4.58 | 5.50 | |
Slaghamer | ||||
027 | 324102-1 | 26.11 | 31.33 | |
Cylindre | ||||
028 | 317444-0 | 158.70 | 190.44 | |
Sluitring 10 | ||||
029 | 941252-3 | 0.83 | 1.00 | |
Zeskant bout 10x40 | ||||
030 | 266276-1 | 1.21 | 1.45 | |
Handgreep 37 | ||||
031 | 273518-6 | 11.19 | 13.43 | |
Borgmoer M8x13 | ||||
032 | 252005-8 | 1.01 | 1.21 | |
Handgreepbout 10x122 | ||||
033 | 266298-1 | 5.46 | 6.55 | |
Handgreepbasis | ||||
034 | 416228-4 | 1.72 | 2.06 | |
Poignee Laterale | ||||
035 | 345279-9 | 27.35 | 32.82 | |
Handgreepbasis | ||||
036 | 416228-4 | 1.72 | 2.06 | |
Draaiknop M10 | ||||
037 | 252633-9 | 7.80 | 9.36 | |
Sluitring 5 | ||||
038 | 253194-2 | 0.83 | 1.00 | |
Inbusbout 5x16 | ||||
039 | 922221-3 | 0.83 | 1.00 | |
Borgmoer M8x13 | ||||
040 | 252005-8 | 1.01 | 1.21 | |
Ring 25 * | ||||
041 | 257196-0 | 2.56 | 3.07 | |
Kogellager 6205llu | ||||
042 | 211373-8 | 10.81 | 12.97 | |
Lagerhuis Hm1303 | ||||
043 | 316730-6 | 9.96 | 11.95 | |
Épuisé | ||||
044 | 265366-7 | |||
Inlegspie 4 | ||||
045 | 254001-2 | 0.83 | 1.00 | |
Krukas | ||||
046 | 324100-5 | 16.07 | 19.28 | |
Naaldlager 1715 | ||||
047 | 212261-2 | 6.90 | 8.28 | |
Sluitring 6x25mm | ||||
048 | 253196-8 | 1.06 | 1.27 | |
Inbusbout M6x18 | ||||
049 | 922326-9 | 0.83 | 1.00 | |
O-ring 67 | ||||
050 | 213720-9 | 1.72 | 2.06 | |
Label Makita Hm1304 | ||||
051 | 819084-5 | 1.43 | 1.72 | |
O-ring 36 | ||||
052 | 213510-0 | 1.21 | 1.45 | |
Oliedeksel | ||||
053 | 416561-4 | 5.46 | 6.55 | |
Schroef 5x16 | ||||
054 | 911221-8 | 0.83 | 1.00 | |
Plaque De Recouvrement | ||||
055 | 345278-1 | 1.06 | 1.27 | |
Rubber koolborstelring | ||||
056 | 262003-4 | 0.83 | 1.00 | |
Koolborstelhouderdop | ||||
057 | 643700-5 | 1.01 | 1.21 | |
Koolborstel set Cb-204 | ||||
058* | 191957-7 | 11.16 | 13.39 | |
Inbusbout 5x18 | ||||
059 | 922227-1 | 0.83 | 1.00 | |
Motorhuisdeksel | ||||
060 | 345319-3 | 12.58 | 15.10 | |
Inbusbout M6x50 | ||||
061 | 922371-4 | 0.83 | 1.00 | |
Sluitring 6x12mm | ||||
062 | 941151-9 | 0.83 | 1.00 | |
Carter De Moteur | ||||
063 | 153438-9 | 52.21 | 62.65 | |
O-ring 30 | ||||
063A | 213406-5 | 1.21 | 1.45 | |
Koolborstel klemring | ||||
063B | 414665-6 | 1.21 | 1.45 | |
S/e Porte Balais | ||||
063C | 643711-0 | 10.81 | 12.97 | |
Krukashuis | ||||
064 | 317623-0 | 135.10 | 162.12 | |
Étiquette | ||||
065 | 853955-6 | 2.80 | 3.36 | |
Veld Hm1304 | ||||
066 | 626124-0 | 65.59 | 78.71 | |
Zeskant bout 5x65 | ||||
067 | 265428-1 | 2.45 | 2.94 | |
Sluitring 18 | ||||
068 | 253794-8 | 0.83 | 1.00 | |
Kogellager 6200llb | ||||
069 | 211066-7 | 4.58 | 5.50 | |
Isolatiering | ||||
070 | 681635-2 | 0.83 | 1.00 | |
Induit | ||||
071 | 516864-7 | 149.79 | 179.75 | |
Waaier 80 | ||||
072 | 241870-0 | 8.84 | 10.61 | |
Kogellager 6202llb | ||||
073 | 211228-7 | 7.44 | 8.93 | |
Plaque Intermediaire | ||||
074 | 418000-0 | 3.22 | 3.86 | |
Inbusbout M6x45 | ||||
075 | 266310-7 | 0.83 | 1.00 | |
Palier | ||||
076 | 317446-6 | 34.35 | 41.22 | |
Kogellager 6302 | ||||
077 | 211214-8 | 9.52 | 11.42 | |
Tandwiel 57 | ||||
078 | 226450-3 | 61.09 | 73.31 | |
Pakkingring B | ||||
079 | 421780-9 | 3.37 | 4.04 | |
Carter | ||||
080 | 317445-8 | 52.21 | 62.65 | |
Goupille | ||||
081 | 256111-1 | 1.51 | 1.81 | |
Pakkingring A | ||||
082 | 421779-4 | 2.16 | 2.59 | |
Tapschroef 4x18 | ||||
083 | 265995-6 | 0.83 | 1.00 | |
Handgreep set | ||||
084 | 183546-2 | 20.76 | 24.91 | |
Sluitring 6Mm A | ||||
085 | 267214-6 | 0.83 | 1.00 | |
Inbusbout M6x50 | ||||
086 | 922371-4 | 0.83 | 1.00 | |
Goupille | ||||
087 | 256111-1 | 1.51 | 1.81 | |
Keerring | ||||
088 | 331212-7 | 3.65 | 4.38 | |
Kogellager 6001 | ||||
089 | 211104-5 | 4.58 | 5.50 | |
Tandwiel 34 | ||||
090 | 226449-8 | 59.77 | 71.72 | |
Kogellager 6201 | ||||
091 | 211109-5 | 4.58 | 5.50 | |
Handgreep set | ||||
092 | 183546-2 | 20.76 | 24.91 | |
Condensator 0,1uf | ||||
093 | 645105-5 | 2.80 | 3.36 | |
Spons | ||||
094 | 685725-3 | 0.83 | 1.00 | |
Blokkeerknop | ||||
095 | 415805-9 | 0.83 | 1.00 | |
Schakelaarhandel | ||||
096 | 417544-7 | 3.37 | 4.04 | |
Vergrendelplaat | ||||
097 | 415806-7 | 0.83 | 1.00 | |
Schakelaar Sw-131 | ||||
098 | 651922-3 | 11.16 | 13.39 | |
Schakelaarhuis | ||||
099 | 421778-6 | 3.22 | 3.86 | |
Drukveer 3 | ||||
100 | 231457-6 | 0.83 | 1.00 | |
Kabeltule 10 | ||||
101 | 682560-0 | 1.72 | 2.06 | |
Netsnoer 2x1.50 4.0mtr | ||||
102 | 695123-3 | 21.70 | 26.04 | |
Klemstrip | ||||
103 | 687124-5 | 0.83 | 1.00 | |
Tapschroef 4x18 | ||||
104 | 265995-6 | 0.83 | 1.00 | |
Imbusbout M6x40 | ||||
105 | 922361-7 | 0.83 | 1.00 | |
Sluitring 6Mm A | ||||
106 | 267214-6 | 0.83 | 1.00 |
