Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita HP1631'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

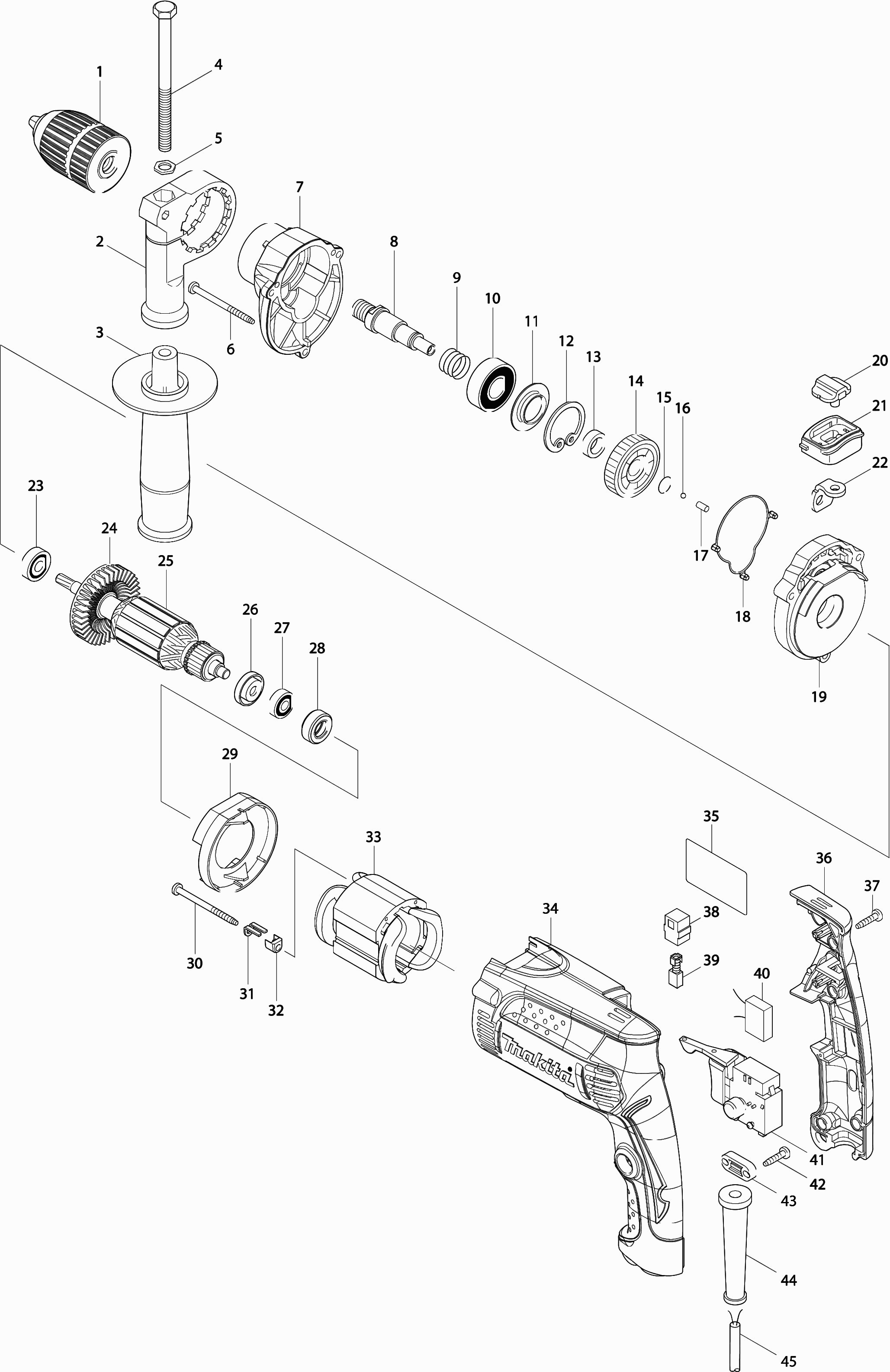

Dessins des Makita HP1631
Liste de pièces de rechange des Makita HP1631
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
boorkop | ||||
001 | 192664-5 | 45.00 | 54.00 | |
Boork.Snsp. 1-13Mm 1/2X20Unf | ||||
001 | 196193-0 | 17.50 | 21.00 | |
Épuisé | ||||
002 | 417630-4 | |||
Handgreep compleet | ||||
003 | 135302-6 | 5.00 | 6.00 | |
Moerbout M8x110mm | ||||
004 | 265495-6 | 0.83 | 1.00 | |
Rondelle | ||||
005 | 345280-4 | 0.83 | 1.00 | |
Tapschroef 4x30mm | ||||
006 | 266361-0 | 0.83 | 1.00 | |
Carter | ||||
007 | 450619-9 | 4.24 | 5.09 | |
Arbre | ||||
008 | 324223-9 | 4.24 | 5.09 | |
Drukveer 16 | ||||
009 | 233330-6 | 0.83 | 1.00 | |
Kogellager 6202llb | ||||
010 | 211228-7 | 6.88 | 8.26 | |
Ring 19 Hp1631 | ||||
011 | 257246-1 | 0.83 | 1.00 | |
Borgring R-35 | ||||
012 | 962153-2 | 0.83 | 1.00 | |
Ring 12 5604R | ||||
013 | 257173-2 | 0.83 | 1.00 | |
Tandwiel 37 | ||||
014 | 227806-3 | 5.44 | 6.53 | |
Tandwiel 37 | ||||
014A | 227806-3 | 5.44 | 6.53 | |
Tandwiel 37 | ||||
014B | 227806-3 | 5.44 | 6.53 | |
Borgring 12 | ||||
015 | 233938-6 | 0.83 | 1.00 | |
Stalen kogel 3.5 | ||||
016 | 216040-0 | 0.83 | 1.00 | |
Pen 4 | ||||
017 | 256251-5 | 0.83 | 1.00 | |
Anneau de retenue | ||||
018 | 424112-9 | 1.58 | 1.90 | |
Palier | ||||
019 | 158676-8 | 7.81 | 9.37 | |
Schakelknop (h/l) | ||||
020 | 417819-4 | 0.83 | 1.00 | |
Schakelbasis | ||||
021 | 450621-2 | 0.83 | 1.00 | |
Schakelgaffel | ||||
022 | 345944-0 | 1.12 | 1.34 | |
Kogellager 608llb | ||||
023 | 210043-6 | 1.58 | 1.90 | |
Waaier 55 | ||||
024 | 241869-5 | 2.98 | 3.58 | |
Induit | ||||
025B | 513439-3 | 24.14 | 28.97 | |
Épuisé | ||||
025 | 515309-2 | |||
Épuisé | ||||
025A | 515309-2 | |||
Isolatiering | ||||
026 | 681636-0 | 1.12 | 1.34 | |
Kogellager 607llb | ||||
027 | 211021-9 | 4.24 | 5.09 | |
Pakkingring 19mm | ||||
028 | 421808-3 | 0.83 | 1.00 | |
Plaque Intermediaire | ||||
029 | 450620-4 | 0.83 | 1.00 | |
Schroef 4x55 | ||||
030 | 266415-3 | 0.83 | 1.00 | |
Plateau De Retenue | ||||
031 | 344871-8 | 0.83 | 1.00 | |
Isolatiedeksel | ||||
032 | 417237-6 | 0.83 | 1.00 | |
Inducteur | ||||
033 | 626644-4 | 20.22 | 24.26 | |
Carter De Moteur | ||||
034 | 450617-3 | 8.82 | 10.58 | |
Étiquette | ||||
035 | 865373-6 | 0.83 | 1.00 | |
Handgreepdeksel | ||||
036 | 158677-6 | 4.24 | 5.09 | |
Tapschroef 4x18 | ||||
037 | 266326-2 | 0.83 | 1.00 | |
S/e Porte Balais | ||||
038 | 643563-9 | 0.83 | 1.00 | |
Koolborstel set Cb-85 | ||||
039 | 191998-3 | 2.58 | 3.10 | |
Condensator 0,22uf | ||||
040 | 645190-8 | 2.26 | 2.71 | |
Commutateur | ||||
041 | 650586-0 | 11.26 | 13.51 | |
Tapschroef 4x18 | ||||
042 | 266326-2 | 0.83 | 1.00 | |
Klemstrip | ||||
043 | 687124-5 | 0.83 | 1.00 | |
Kabeltule 8-85 | ||||
044 | 682502-4 | 1.58 | 1.90 | |
Netsnoer 2x1.00 2.2mtr | ||||
045 | 665383-1 | 10.00 | 12.00 |
