Dessins techniques et pièces de rechange Makita HR2510

Type exact:
HR2510
HR2510

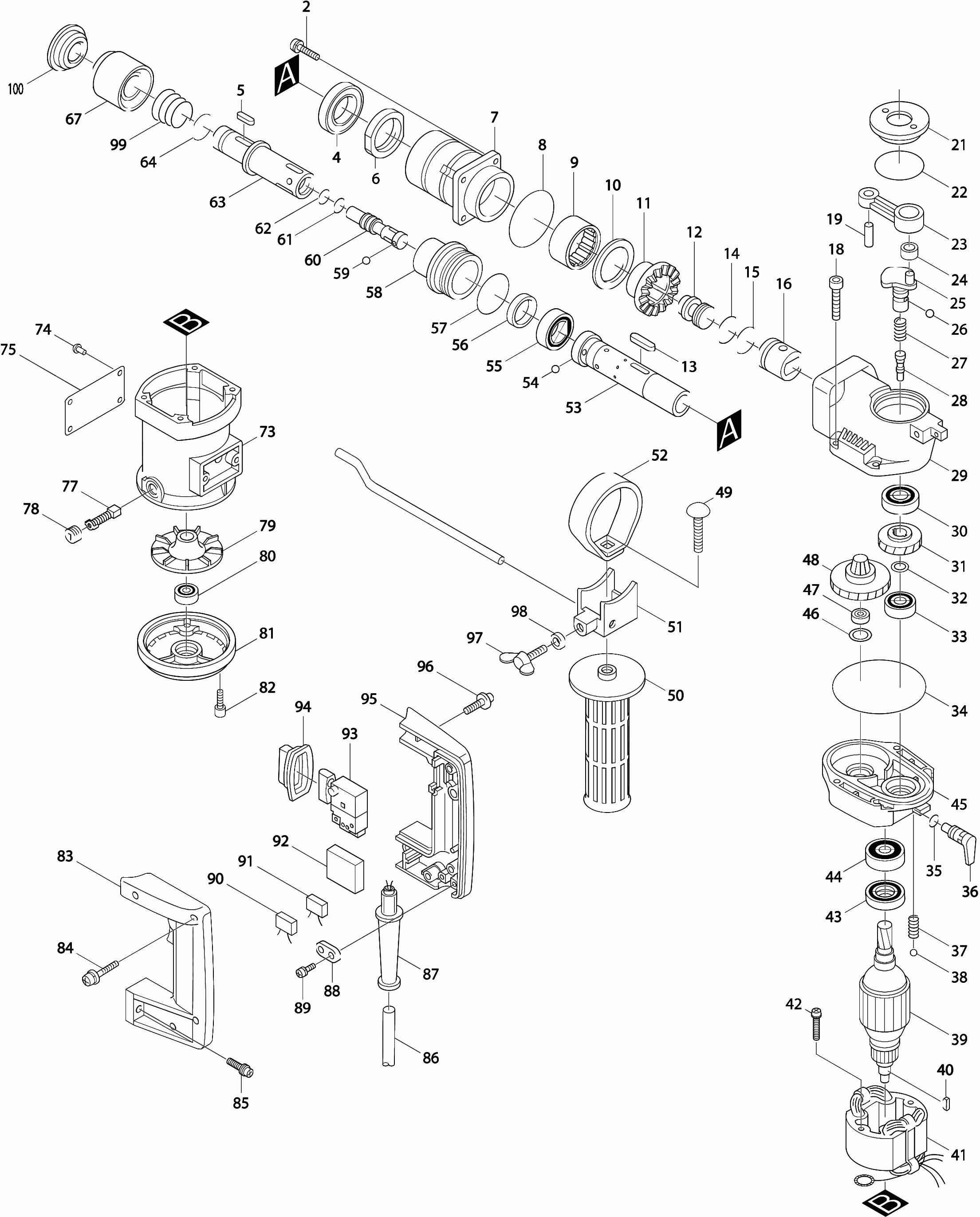

Dessins des MAKITA HR2510
Liste de pièces de rechange des MAKITA HR2510
Sur cette page, vous pouvez ajouter des pièces de rechange à votre panier en sélectionnant la quantité désirée et en cliquant sur le bouton derrière. Si vous avez terminé votre sélection, veuillez activer le bouton "Votre panier" en bas de la page. Les prix mentionnés ci-dessous sont TTC. Le montant exact de la TVA est calculé dans le panier en fonction du pays dans lequel vous souhaitez recevoir le colis.
Inbusbout M6X25 P * | ||||
002 | 922342-1 | Inbusbout M6X25 P * | € 1.00 | |
Kogellager 3009 | ||||
004 | 211441-7 | Kogellager 3009 | € 12.24 | |
Roller 6.5 A | ||||
005 | 322255-0 | Roller 6.5 A | € 5.90 | |
Moer M30.3-36 | ||||
006 | 252214-9 | Moer M30.3-36 | € 13.82 | |
Slaghuis | ||||
007 | 315606-4 | Slaghuis | € 61.38 | |
O-ring 48 | ||||
008 | 213606-7 | O-ring 48 | € 1.73 | |
Naaldlager 3516 * | ||||
009 | 212455-9 | Naaldlager 3516 * | € 13.82 | |
Sluitring 35 * | ||||
010 | 253802-5 | Sluitring 35 * | € 5.26 | |
Tandwiel 33 Hr2210 * | ||||
011 | 221333-2 | Tandwiel 33 Hr2210 * | € 46.60 | |
Slagstuk | ||||
012 | 322505-3 | Slagstuk | € 10.87 | |
Inlegspie 4 | ||||
013 | 254231-5 | Inlegspie 4 | € 1.01 | |
O-ring 19 (3 mm) | ||||
014* | 213308-5 | O-ring 19 (3 mm) | € 4.61 | |
O-ring 19 (3 mm) | ||||
015* | 213308-5 | O-ring 19 (3 mm) | € 4.61 | |
Piston | ||||
016 | 321685-2 | Piston | € 12.24 | |
Inbusbout M6x45 | ||||
018 | 922366-7 | Inbusbout M6x45 | € 1.00 | |
Pen 6 | ||||
019 | 256099-5 | Pen 6 | € 1.44 | |
Oliedeksel | ||||
021 | 155986-4 | Oliedeksel | € 5.90 | |
O-ring 44 | ||||
022 | 213554-0 | O-ring 44 | € 1.44 | |
Tige de commande | ||||
023 | 315146-2 | Tige de commande | € 18.02 | |
Naaldlager 810 | ||||
024 | 212025-4 | Naaldlager 810 | € 7.49 | |
Krukas Hr2510 * | ||||
025 | 321615-3 | Krukas Hr2510 * | € 29.04 | |
Épuisé | ||||
026 | 216011-7 | Épuisé | ||
Drukveer 6 | ||||
027 | 231327-9 | Drukveer 6 | € 1.00 | |
Schakelpen | ||||
028 | 321618-7 | Schakelpen | € 2.45 | |
Krukashuis Hr2510 * | ||||
029 | 159504-0 | Krukashuis Hr2510 * | € 57.42 | |
Kogellager 6002ddw | ||||
030 | 211236-8 | Kogellager 6002ddw | € 9.58 | |
Tandwiel 36 | ||||
031 | 221719-0 | Tandwiel 36 | € 19.93 | |
Sluitring 15 | ||||
032 | 253147-1 | Sluitring 15 | € 1.00 | |
Kogellager 6902 | ||||
033 | 211221-1 | Kogellager 6902 | € 14.33 | |
O-ring 90 | ||||
034 | 213806-9 | O-ring 90 | € 2.09 | |
O-ring 7 | ||||
035 | 213011-8 | O-ring 7 | € 1.00 | |
Slaguitschakelhefboom Hr2510 * | ||||
036 | 321614-5 | Slaguitschakelhefboom Hr2510 * | € 16.18 | |
Drukveer 2 | ||||
037 | 231328-7 | Drukveer 2 | € 1.00 | |
Stalen kogel 4 | ||||
038 | 216008-6 | Stalen kogel 4 | € 1.00 | |
Induit | ||||
039 | 612798-3 | Induit | € 57.42 | |
Inlegspie 3 | ||||
040 | 254031-3 | Inlegspie 3 | € 1.00 | |
Inducteur | ||||
041 | 528722-5 | Inducteur | € 43.30 | |
Zeskantbout M5X45 * | ||||
042 | 265347-1 | Zeskantbout M5X45 * | € 1.44 | |
Keerring 13 | ||||
043 | 213157-0 | Keerring 13 | € 9.58 | |
Kogellager 6200llb | ||||
044 | 211066-7 | Kogellager 6200llb | € 4.61 | |
Tandwielhuis Hr2510 * | ||||
045 | 157166-8 | Tandwielhuis Hr2510 * | € 43.30 | |
Dunne sluitring 15 | ||||
046 | 253314-8 | Dunne sluitring 15 | € 1.00 | |
Kogellager 608ddw | ||||
047 | 210005-4 | Kogellager 608ddw | € 4.61 | |
Koppelbegrenzer | ||||
048 | 151162-8 | Koppelbegrenzer | € 102.96 | |
Kogellager 16001 | ||||
048A | 211121-5 | Kogellager 16001 | € 13.82 | |
Slotbout 8x35 | ||||
049 | 923456-9 | Slotbout 8x35 | € 1.00 | |
Klemblok | ||||
051 | 315145-4 | Klemblok | € 4.10 | |
Circlips | ||||
052 | 342633-8 | Circlips | € 3.67 | |
Cilinder 24 Hr2510 Nieuw * | ||||
053 | 331407-2 | Cilinder 24 Hr2510 Nieuw * | € 75.24 | |
Stalen kogel 6.4 | ||||
054 | 216007-8 | Stalen kogel 6.4 | € 1.00 | |
Keerring 21 | ||||
055 | 213377-6 | Keerring 21 | € 10.87 | |
Vilten ring 20 | ||||
056 | 443061-1 | Vilten ring 20 | € 1.00 | |
O-ring 44 | ||||
057 | 213554-0 | O-ring 44 | € 1.44 | |
Afdichtring nieuw | ||||
058 | 322096-4 | Afdichtring nieuw | € 31.81 | |
Stalen kogel 6.4 | ||||
059 | 216007-8 | Stalen kogel 6.4 | € 1.00 | |
Slagstuk | ||||
060 | 321616-1 | Slagstuk | € 26.27 | |
O-ring 10 | ||||
061* | 213058-2 | O-ring 10 | € 2.81 | |
O-ring 10 | ||||
062* | 213058-2 | O-ring 10 | € 2.81 | |
Boorhouder compleet | ||||
063 | 134561-9 | Boorhouder compleet | € 85.80 | |
O-ring 10 | ||||
064 | 213064-7 | O-ring 10 | € 2.81 | |
Verwisselring | ||||
067 | 414425-6 | Verwisselring | € 21.84 | |
Carter De Moteur | ||||
073 | 157523-0 | Carter De Moteur | € 31.81 | |
Koolborstel set Cb-105 | ||||
077* | 181038-5 | Koolborstel set Cb-105 | € 7.49 | |
Koolborstelhouderdop | ||||
078 | 643600-9 | Koolborstelhouderdop | € 1.01 | |
Waaier 65 | ||||
079 | 241819-0 | Waaier 65 | € 5.90 | |
Kogellager 608llb | ||||
080 | 210043-6 | Kogellager 608llb | € 1.73 | |
Logement De Palier | ||||
081 | 152229-5 | Logement De Palier | € 18.02 | |
Schroef 5x25 | ||||
082 | 911241-2 | Schroef 5x25 | € 1.00 | |
Handvat compleet | ||||
083 | 181562-8 | Handvat compleet | € 16.18 | |
Schroef 5x25 | ||||
084 | 911241-2 | Schroef 5x25 | € 1.00 | |
Schroef 6X25 | ||||
085 | 911343-4 | Schroef 6X25 | € 1.00 | |
Netsnoer 2x1.50 4.0mtr | ||||
086 | 695123-3 | Netsnoer 2x1.50 4.0mtr | € 21.84 | |
Kabeltule 10-90 | ||||
087 | 682505-8 | Kabeltule 10-90 | € 1.73 | |
Klemstrip | ||||
088 | 687031-2 | Klemstrip | € 1.00 | |
Schroef 4x18 | ||||
089 | 911131-9 | Schroef 4x18 | € 1.00 | |
Schakelaar Sw-88 | ||||
093 | 651258-0 | Schakelaar Sw-88 | € 37.36 | |
Stofkap v schakelaar | ||||
094 | 421145-5 | Stofkap v schakelaar | € 1.73 | |
Schroef 6x20 | ||||
096 | 911333-7 | Schroef 6x20 | € 1.00 | |
Vleugelbout 5x15 | ||||
097 | 924216-2 | Vleugelbout 5x15 | € 1.00 | |
Konische drukveer | ||||
099 | 231946-1 | Konische drukveer | € 1.00 | |
Stofkap 34 | ||||
100* | 286220-2 | Stofkap 34 | € 2.81 | |
Statorveertje Cb-7 | ||||
101 | 654019-7 | Statorveertje Cb-7 | € 1.00 | |
Klembus tbv statorv. 2mm | ||||
102 | 654502-4 | Klembus tbv statorv. 2mm | € 1.00 | |
Boorhouder compleet | ||||
105 | 134561-9 | Boorhouder compleet | € 85.80 |
