Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita HR3012FC'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

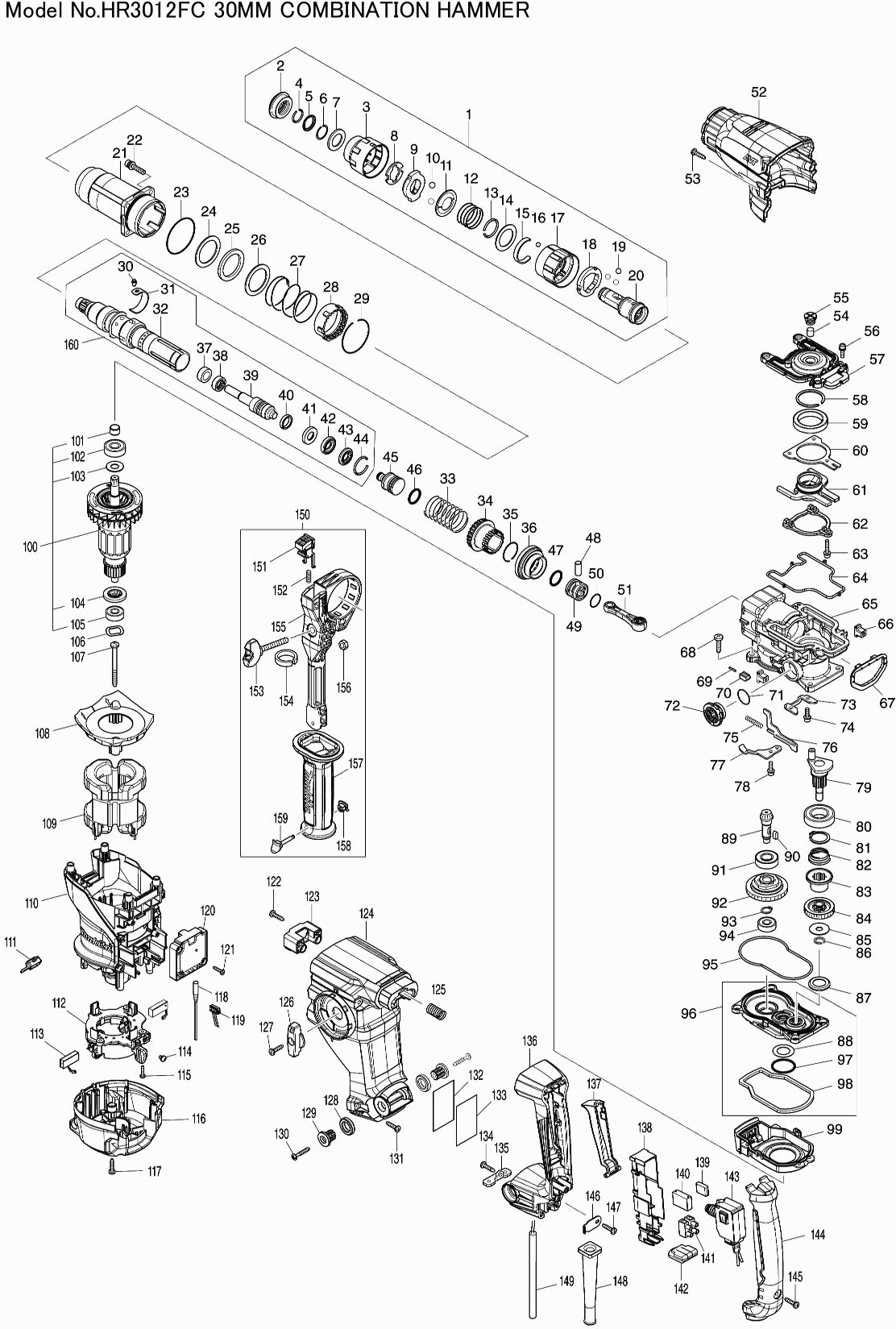

Dessins des Makita HR3012FC
Liste de pièces de rechange des Makita HR3012FC
| Pos. | Description | Prix hors TVA | Prix TTC | |
| Les prix affichés incluent la TVA | ||||
| Rubber stofkap 35 | ||||
| 001 | 286288-8 | 0.83 | 1.00 | |
| Boorkopkap HR3001/11C | ||||
| 002 | 459685-3 | 0.94 | 1.13 | |
| Veerring 14 | ||||
| 003 | 233989-9 | 0.83 | 1.00 | |
| Revet 16mm | ||||
| 004 | 346834-0 | 0.83 | 1.00 | |
| Borgveer 15 | ||||
| 005 | 233992-0 | 0.83 | 1.00 | |
| Ring 17 HR3001/11 | ||||
| 006 | 327269-4 | 3.78 | 4.54 | |
| Stalen kogel 7.0 | ||||
| 007 | 216022-2 | 0.83 | 1.00 | |
| Geleiderevet HR3001/11 | ||||
| 008 | 347553-1 | 0.83 | 1.00 | |
| Drukveer 21-34 HR3001/11 | ||||
| 009 | 232503-8 | 0.83 | 1.00 | |
| Cilinderhuis HR3001/11C | ||||
| 021 | 140J35-0 | 13.16 | 15.79 | |
| Oliekeerring 25 | ||||
| 021-C10 | 213636-8 | 3.77 | 4.52 | |
| Inbusschr M5x25mm HR3011FC | ||||
| 022 | 266793-1 | 0.83 | 1.00 | |
| O-ring 46 | ||||
| 023 | 213620-3 | 0.83 | 1.00 | |
| Revet 31 | ||||
| 024 | 267354-0 | 0.83 | 1.00 | |
| Rubber ring 31 HR3001/11C | ||||
| 025 | 422493-5 | 1.32 | 1.58 | |
| Revet 31 | ||||
| 026 | 267354-0 | 0.83 | 1.00 | |
| Drukveer 37 HR3001/11 | ||||
| 027 | 232496-9 | 0.83 | 1.00 | |
| Blokkeerbus | ||||
| 028 | 419986-1 | 0.97 | 1.16 | |
| Veerring 41 | ||||
| 029 | 233952-2 | 0.83 | 1.00 | |
| Kraagpin 4 HR3011FC | ||||
| 030 | 256598-7 | 0.94 | 1.13 | |
| Bladveer HR3011FC | ||||
| 031 | 347501-0 | 0.83 | 1.00 | |
| Boor-beitelhouder HR3011FC | ||||
| 032 | 327277-5 | 29.23 | 35.08 | |
| Drukveer 27 HR3001/11 | ||||
| 033 | 232497-7 | 0.83 | 1.00 | |
| Geleidebus HR3001/11 | ||||
| 034 | 327276-7 | 6.88 | 8.26 | |
| Borgveer 24 HR3001/11 | ||||
| 035 | 232501-2 | 0.83 | 1.00 | |
| Tandwiel 31 A HR3001/11 | ||||
| 036 | 226868-8 | 16.56 | 19.87 | |
| Bus 11 HR3011FC | ||||
| 037 | 327515-5 | 1.20 | 1.44 | |
| Ring 11 HR3011FC | ||||
| 038 | 327516-3 | 1.32 | 1.58 | |
| Slagbout A HR3011FC | ||||
| 039 | 140S89-1 | 11.60 | 13.92 | |
| Pakkingring 12 HR3011FC | ||||
| 040 | 213880-7 | 1.57 | 1.88 | |
| Ring 11 HR3011FC | ||||
| 041 | 327268-6 | 1.14 | 1.37 | |
| Stootring 12 | ||||
| 042 | 424267-0 | 1.12 | 1.34 | |
| Sluitring 11 HR3011FC | ||||
| 043 | 327271-7 | 1.12 | 1.34 | |
| Veerring 21 | ||||
| 044 | 231987-7 | 0.83 | 1.00 | |
| Slagstuk HR3001/11 | ||||
| 045 | 327266-0 | 2.98 | 3.58 | |
| O-ring 16 HR3001/11 | ||||
| 046 | 213881-5 | 2.98 | 3.58 | |
| O-ring 16 HR3001/11 | ||||
| 047 | 213881-5 | 2.98 | 3.58 | |
| Pin 7 HR3001/11 | ||||
| 048 | 268122-4 | 0.83 | 1.00 | |
| Zuiger HR3001/11 | ||||
| 049 | 319807-6 | 4.24 | 5.09 | |
| O-ring 16 | ||||
| 050 | 213226-7 | 0.94 | 1.13 | |
| Drijfstang HR3001/11 | ||||
| 051 | 140J36-8 | 3.77 | 4.52 | |
| Cilinderkap HR3011/12 | ||||
| 052 | 459167-5 | 6.08 | 7.30 | |
| Tapschroef 4x18 | ||||
| 053 | 266326-2 | 0.83 | 1.00 | |
| Dempingsvilt | ||||
| 054 | 443153-6 | 0.83 | 1.00 | |
| Filterkap HR3001/11 | ||||
| 055 | 459180-3 | 0.83 | 1.00 | |
| Zeskant bout | ||||
| 056 | 922123-3 | 0.83 | 1.00 | |
| Krukaskap HR3011/12 | ||||
| 057 | 319802-6 | 6.08 | 7.30 | |
| Anneau de retenue | ||||
| 058 | 961140-8 | 0.83 | 1.00 | |
| Kogellager 6806ddw | ||||
| 059 | 211423-9 | 3.77 | 4.52 | |
| Lagerborgring B HR3001/11 | ||||
| 060 | 347500-2 | 1.12 | 1.34 | |
| Balansgewicht HR3001/11 | ||||
| 061 | 140J31-8 | 34.33 | 41.20 | |
| Balanshouder HR3001/11 | ||||
| 062 | 310927-9 | 2.58 | 3.10 | |
| Inbusbout M4x20mm | ||||
| 063 | 266948-8 | 0.83 | 1.00 | |
| Pakkingring B HR3001/11 | ||||
| 064 | 459182-9 | 0.95 | 1.14 | |
| Krukashuis cpl HR3001/11 | ||||
| 065 | 140J33-4 | 21.96 | 26.35 | |
| Montagebus | ||||
| 066 | 455165-7 | 0.83 | 1.00 | |
| Stootkussen HR3001/11 | ||||
| 067 | 422492-7 | 1.14 | 1.37 | |
| Tapschroef 5x20 | ||||
| 068-1 | 266021-4 | 0.83 | 1.00 | |
| Schroef 4x20 | ||||
| 068 | 266420-0 | 0.83 | 1.00 | |
| Drukveer 2 HR3001/11 | ||||
| 069 | 232499-3 | 0.83 | 1.00 | |
| Drukplaat HR3001/11 | ||||
| 070 | 310929-5 | 0.83 | 1.00 | |
| O-ring 18 | ||||
| 071 | 213262-3 | 0.94 | 1.13 | |
| Koppelplaat HR3001/11 | ||||
| 072 | 459175-6 | 1.32 | 1.58 | |
| Lagerborgring A HR3001/11 | ||||
| 073 | 347497-5 | 0.83 | 1.00 | |
| Zeskant bout | ||||
| 074 | 922123-3 | 0.83 | 1.00 | |
| Drukveer 4 | ||||
| 075 | 234019-9 | 0.83 | 1.00 | |
| Verbindingsplaat | ||||
| 076 | 345814-3 | 0.83 | 1.00 | |
| Geleideplaat HR3001/11 | ||||
| 077 | 347498-3 | 0.83 | 1.00 | |
| Zeskant bout | ||||
| 078 | 922123-3 | 0.83 | 1.00 | |
| Krukas cpl HR3001/11 | ||||
| 079 | 140M22-7 | 10.00 | 12.00 | |
| Kogellager 6904 | ||||
| 080 | 211323-3 | 7.81 | 9.37 | |
| Borgring S-20 | ||||
| 081 | 961060-6 | 0.83 | 1.00 | |
| Drukveer 21-26 HR3001/11 | ||||
| 082 | 232498-5 | 0.83 | 1.00 | |
| Koppeling HR3001/11 | ||||
| 083 | 327273-3 | 2.98 | 3.58 | |
| Tandwiel 31 B HR3001/11 | ||||
| 084 | 226869-6 | 6.88 | 8.26 | |
| Revet 29 | ||||
| 085 | 267353-2 | 0.83 | 1.00 | |
| Anneau de retenue | ||||
| 086 | 961034-7 | 0.83 | 1.00 | |
| Schotelring 16 | ||||
| 087 | 345818-5 | 0.83 | 1.00 | |
| Sluitring 16 * | ||||
| 088 | 253749-3 | 0.83 | 1.00 | |
| Tandwiel 8 HR3001/11 | ||||
| 089 | 226867-0 | 8.80 | 10.56 | |
| Inlegspie 4 | ||||
| 090 | 254239-9 | 0.94 | 1.13 | |
| Kogellager 6001dw | ||||
| 091 | 211131-2 | 8.80 | 10.56 | |
| Koppelbegrenzer | ||||
| 092 | 125386-2 | 39.78 | 47.74 | |
| Borgring S-10 | ||||
| 093 | 961006-2 | 0.83 | 1.00 | |
| Kogellager 608ddw | ||||
| 094 | 210005-4 | 4.24 | 5.09 | |
| Pakkingring A HR3001/11 | ||||
| 095 | 459181-1 | 0.83 | 1.00 | |
| Tandwielhuis HR3011/12 | ||||
| 096 | 136330-4 | 11.64 | 13.97 | |
| Épuisé | ||||
| 097 | 213445-5 | |||
| Sponsrubber HR3011FC | ||||
| 098 | 459183-7 | 0.83 | 1.00 | |
| Luchtinlaat HR3001/12 | ||||
| 099 | 140J32-6 | 5.44 | 6.53 | |
| Anker HR3011/12 | ||||
| 100 | 515448-8 | 42.81 | 51.37 | |
| Bus 10 | ||||
| 101 | 331775-3 | 0.83 | 1.00 | |
| Épuisé | ||||
| 102 | 211097-6 | |||
| Sluitring 10 | ||||
| 103 | 253171-4 | 0.83 | 1.00 | |
| Isolatiering | ||||
| 104 | 681644-1 | 0.83 | 1.00 | |
| Kogellager 608ddw | ||||
| 105 | 210005-4 | 4.24 | 5.09 | |
| Épuisé | ||||
| 106 | 267804-5 | |||
| Tapschroef 5x60 HS7601 P | ||||
| 107 | 266329-6 | 0.83 | 1.00 | |
| Tussenplaat HR3001/11 | ||||
| 108 | 459172-2 | 1.12 | 1.34 | |
| Veld HR3001 | ||||
| 109 | 621899-6 | 24.14 | 28.97 | |
| Motorhuis HR3011/12 | ||||
| 110 | 459158-6 | 10.00 | 12.00 | |
| Ledcircuit HR3001/11 | ||||
| 111 | 620C43-0 | 4.24 | 5.09 | |
| Koolborstelhouder HR3001/11 | ||||
| 112 | 632N59-9 | 13.16 | 15.79 | |
| Koolborstel CB351 HR3011FC | ||||
| 113 | 197245-0 | 6.08 | 7.30 | |
| Schroef 3.5X5 * | ||||
| 114 | 652044-2 | 0.83 | 1.00 | |
| Schroef M3x14 | ||||
| 115 | 266404-8 | 0.83 | 1.00 | |
| Achterdeksel HR3011/12 | ||||
| 116 | 459169-1 | 4.82 | 5.78 | |
| Tapschroef 4x18 | ||||
| 117 | 266326-2 | 0.83 | 1.00 | |
| Kabelboom HR3011/12 | ||||
| 118 | 632P88-4 | 0.95 | 1.14 | |
| Kabelboom HR3011/12 | ||||
| 119 | 632P89-2 | 1.92 | 2.30 | |
| Controller HR3011/12 | ||||
| 120 | 620C41-4 | 36.87 | 44.24 | |
| Schroef M3x14 | ||||
| 121 | 266404-8 | 0.83 | 1.00 | |
| Tapschroef 4x18 | ||||
| 122 | 266326-2 | 0.83 | 1.00 | |
| Handgreepbus HR3001/11 | ||||
| 123 | 140M21-9 | 0.84 | 1.01 | |
| Rubber pen 6 | ||||
| 123-C10 | 263005-3 | 0.83 | 1.00 | |
| Handgreepbasis HR3011/12 | ||||
| 124 | 459161-7 | 6.24 | 7.49 | |
| Drukveer 10 HR3001/11 | ||||
| 125 | 232500-4 | 0.83 | 1.00 | |
| Wisselhendel HR3001/11 | ||||
| 126 | 459174-8 | 0.83 | 1.00 | |
| Tapschroef 4x18 | ||||
| 127 | 266326-2 | 0.83 | 1.00 | |
| Bufferring HR001G | ||||
| 128 | 459184-5 | 0.83 | 1.00 | |
| Schouderpin 5 HR3001/11 | ||||
| 129 | 459176-4 | 0.83 | 1.00 | |
| Tapschroef 5x25 | ||||
| 130-1 | 266041-8 | 0.83 | 1.00 | |
| Tapschroef Pf 5x25 | ||||
| 130 | 266459-3 | 0.83 | 1.00 | |
| Tapschroef 4x18 | ||||
| 131 | 266326-2 | 0.83 | 1.00 | |
| Naamplaat HR3011FC | ||||
| 132 | 856V77-3 | 2.58 | 3.10 | |
| Label trp HR3011FC # | ||||
| 133 | 818U61-0 | 0.83 | 1.00 | |
| Tapschroef 4x18 | ||||
| 134 | 266326-2 | 0.83 | 1.00 | |
| Borgplaat HR3001/11 | ||||
| 135 | 347502-8 | 1.32 | 1.58 | |
| Handgreep HR3001/11 | ||||
| 136 | 459164-1 | 4.24 | 5.09 | |
| Schakelaarhendel HR3001/11 | ||||
| 137 | 459177-2 | 0.94 | 1.13 | |
| Schakelaarhouder HR3001/11 | ||||
| 138 | 459178-0 | 1.32 | 1.58 | |
| Aanloopweerstand | ||||
| 139 | 646755-9 | 1.58 | 1.90 | |
| Condensator 0,22uf | ||||
| 140 | 645190-8 | 2.26 | 2.71 | |
| Kroonsteen | ||||
| 141 | 654531-7 | 2.00 | 2.40 | |
| Buffer HR3001/11 | ||||
| 142 | 424031-9 | 0.83 | 1.00 | |
| Schakelaar HR3001/11 | ||||
| 143 | 651385-3 | 20.08 | 24.10 | |
| Handgreepkap HR3001/11 | ||||
| 144 | 459166-7 | 4.82 | 5.78 | |
| Tapschroef 4x18 | ||||
| 145 | 266326-2 | 0.83 | 1.00 | |
| Trekontlaster | ||||
| 146 | 687169-3 | 0.83 | 1.00 | |
| Tapschroef 4x18 | ||||
| 147 | 266326-2 | 0.83 | 1.00 | |
| Kabeltule 10 | ||||
| 148 | 682573-1 | 1.32 | 1.58 | |
| Épuisé | ||||
| 149 | 665890-4 | |||
| Handgreep anti-vibratie DHR281/283 | ||||
| 150 | 126882-3 | 17.50 | 21.00 | |
| Blokkeerknop DHR281/283 | ||||
| 151 | 144959-2 | 0.95 | 1.14 | |
| Drukveer 4 | ||||
| 152 | 233360-7 | 0.83 | 1.00 | |
| Vleugelbout M6x50mm | ||||
| 153 | 265625-9 | 0.94 | 1.13 | |
| Sponsrubber DHR281 | ||||
| 154 | 422258-5 | 0.83 | 1.00 | |
| Épuisé | ||||
| 155 | 458355-1 | |||
| Zeskant moer M6 | ||||
| 156 | 931302-2 | 0.83 | 1.00 | |
| Épuisé | ||||
| 157 | 458357-7 | |||
| Afdekkap handgrp DHR281/283 | ||||
| 158 | 422255-1 | 0.94 | 1.13 | |
| Montagepin h-gr DHR281/283 | ||||
| 159 | 161838-9 | 2.98 | 3.58 | |
| Boor/beitelhouder HR3011/12 | ||||
| 160 | 136312-6 | 52.76 | 63.31 | |
| Boor/beitelhouder HR3011/12 | ||||
| 160-1 | 136312-6 | 52.76 | 63.31 | |
