Vous trouverez ici toutes les pièces et dessins disponibles du 'Makita LS0810'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

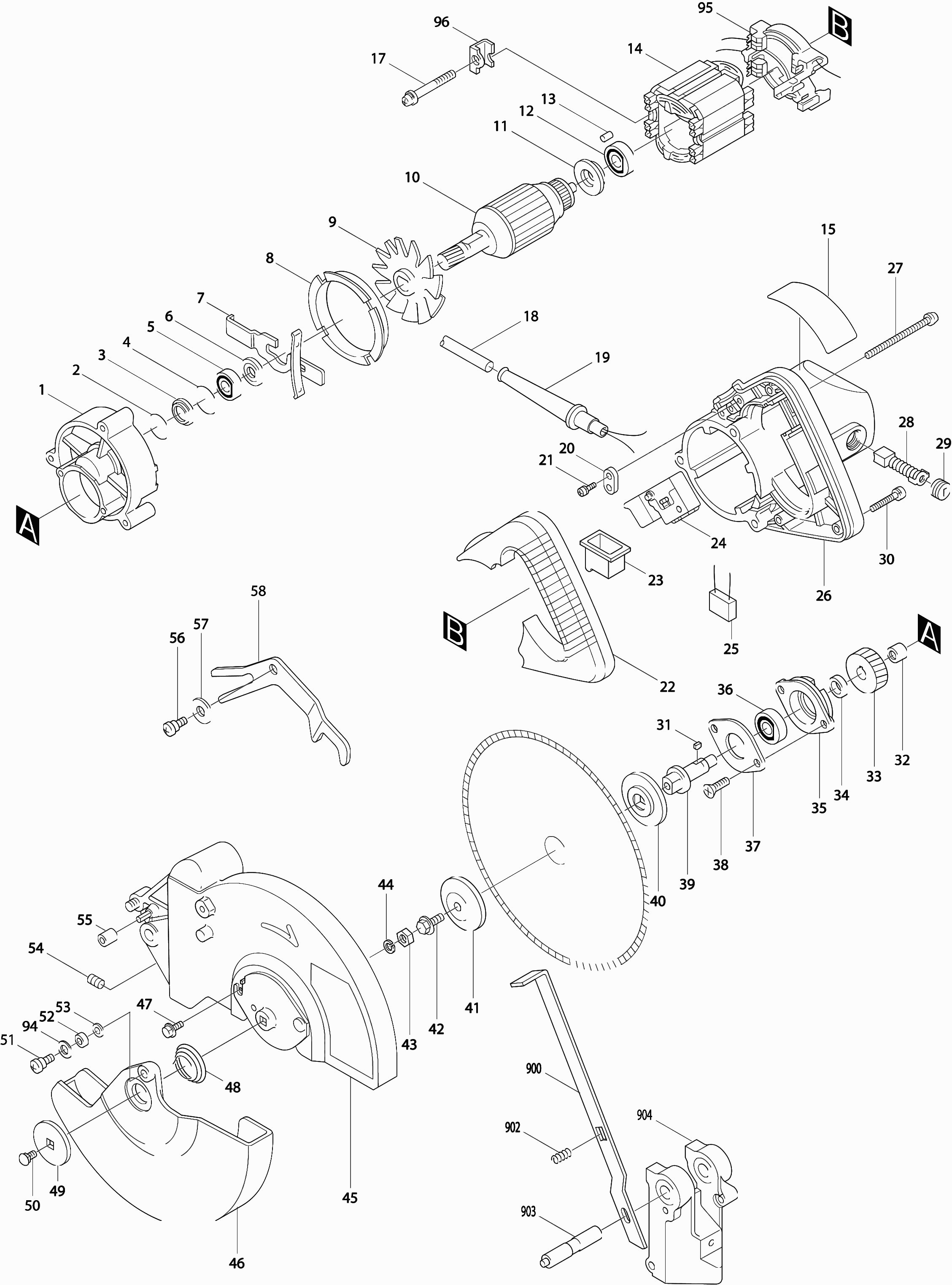

Dessins des Makita LS0810
Liste de pièces de rechange des Makita LS0810
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Pas d'informations disponibles, non commandable | ||||
001 | 157402-2@141 | |||
O-ring 26 | ||||
002 | 213407-3@141 | 1.21 | 1.45 | |
Sluitring 23 * | ||||
003 | 343318-9@141 | 1.01 | 1.21 | |
O-ring 30 | ||||
004 | 213406-5@141 | 1.21 | 1.45 | |
Kogellager 6200llb | ||||
005 | 211066-7@141 | 4.58 | 5.50 | |
Sluitring 10 | ||||
006 | 253769-7@141 | 1.02 | 1.22 | |
Klemblok Ls0810 * | ||||
007 | 163109-0@141 | 4.09 | 4.91 | |
Pas d'informations disponibles, non commandable | ||||
008 | 343319-7@141 | |||
Waaier 70 * | ||||
009 | 241119-8@141 | 5.87 | 7.04 | |
Induit | ||||
010 | 512868-7@141 | 59.77 | 71.72 | |
Isolatiering | ||||
011 | 681625-5@141 | 0.83 | 1.00 | |
Kogellager 608llb | ||||
012 | 210043-6@141 | 1.72 | 2.06 | |
Rubber pen 4 | ||||
013 | 263014-2@141 | 0.83 | 1.00 | |
Inducteur | ||||
014 | 634133-5@141 | 41.78 | 50.14 | |
Klembus tbv statorv. 2mm | ||||
015 | 654502-4@141 | 0.83 | 1.00 | |
Statorveertje Cb5 | ||||
016 | 654020-2@141 | 0.83 | 1.00 | |
Schroef 5X60 * | ||||
017 | 911681-4@141 | 0.83 | 1.00 | |
Netsnoer 2x1.50 4.0mtr | ||||
018 | 695123-3@141 | 21.70 | 26.04 | |
Kabeltule 10-85 | ||||
019 | 682504-0@141 | 1.72 | 2.06 | |
Klemstrip | ||||
020 | 687001-1@141 | 0.83 | 1.00 | |
Schroef 4x18 | ||||
021 | 911131-9@141 | 0.83 | 1.00 | |
Handvatdeksel Ls0810 * | ||||
022 | 410650-7@141 | 7.44 | 8.93 | |
Stofkap v schakelaar | ||||
023 | 421142-1@141 | 2.44 | 2.93 | |
Schakelaar 651245-9 Ls0810 * | ||||
024 | 651245-9@141 | 11.32 | 13.58 | |
Pas d'informations disponibles, non commandable | ||||
026 | 157614-7@141 | |||
Schroef 5x65 | ||||
027 | 911290-9@141 | 0.83 | 1.00 | |
Koolborstel set Cb-100 | ||||
028 | 181030-1@141 | 3.65 | 4.38 | |
Koolborstelhouderdop | ||||
029 | 643600-9@141 | 1.01 | 1.21 | |
Schroef 4x25 | ||||
030 | 911148-2@141 | 0.83 | 1.00 | |
Inlegspie 4 | ||||
031 | 254011-9@141 | 0.83 | 1.00 | |
Naaldlager 810 | ||||
032 | 212004-2@141 | 4.58 | 5.50 | |
Tandwiel 44 | ||||
033 | 221602-1@141 | 28.73 | 34.48 | |
Ring 12 | ||||
034 | 257010-0@141 | 1.01 | 1.21 | |
Pas d'informations disponibles, non commandable | ||||
035 | 315875-7@141 | |||
Kogellager 6201dw1 | ||||
036 | 211129-9@141 | 7.44 | 8.93 | |
Plus disponible, pas de remplacement | ||||
037 | 285659-6@141 | |||
Verzonken Schroef M4X20 * | ||||
038 | 251316-8@141 | 0.83 | 1.00 | |
As Ls0810 * | ||||
039 | 321904-6@141 | 23.74 | 28.49 | |
Binnenflens 45 | ||||
040 | 224233-5@141 | 10.84 | 13.01 | |
Buitenflens 45 | ||||
041 | 224234-3@141 | 4.58 | 5.50 | |
Zeskant bout 6x17 | ||||
042 | 265226-3@141 | 0.83 | 1.00 | |
Zeskant moer M5 | ||||
043 | 931202-6@141 | 0.83 | 1.00 | |
Veerring 5MM DLS211 | ||||
044 | 253427-5@141 | 0.83 | 1.00 | |
Pas d'informations disponibles, non commandable | ||||
045 | 151270-5@141 | |||
Kunststof beschermkap | ||||
046 | 419479-8@141 | 11.68 | 14.02 | |
Pas d'informations disponibles, non commandable | ||||
047 | 265323-5@141 | |||
Torsieveer 24 | ||||
048 | 231934-8@141 | 2.44 | 2.93 | |
Sluitring 6 | ||||
049 | 253977-0@141 | 1.43 | 1.72 | |
Slotbout M5X8 * | ||||
050 | 923901-4@141 | 0.83 | 1.00 | |
Schroef M6 | ||||
051 | 251331-2@141 | 1.21 | 1.45 | |
Ring 8 | ||||
052 | 257157-0@141 | 1.43 | 1.72 | |
Sluitring 6x12mm | ||||
053 | 941151-9@141 | 0.83 | 1.00 | |
Pas d'informations disponibles, non commandable | ||||
054 | 265832-4@141 | |||
Rubber Bus 5 * | ||||
055 | 262513-1@141 | 2.08 | 2.50 | |
Schroef M6 | ||||
056 | 251331-2@141 | 1.21 | 1.45 | |
Sluitring 8 | ||||
057 | 253022-1@141 | 0.83 | 1.00 | |
Pas d'informations disponibles, non commandable | ||||
058 | 343466-4@141 | |||
Pas d'informations disponibles, non commandable | ||||
059 | 231771-0@141 | |||
Pas d'informations disponibles, non commandable | ||||
060 | 251210-4@141 | |||
Drukveer 5.5 | ||||
061 | 231038-6@141 | 0.83 | 1.00 | |
Pen 12 | ||||
062 | 322110-6@141 | 4.09 | 4.91 | |
Pas d'informations disponibles, non commandable | ||||
063 | 951234-7@141 | |||
Arm Comp Ls0810 * | ||||
064 | 152311-0@141 | 49.85 | 59.82 | |
Pas d'informations disponibles, non commandable | ||||
065 | 321906-2@141 | |||
O-ring 5 | ||||
066 | 213021-5@141 | 0.83 | 1.00 | |
Met.schroef Ph M5x14mm Ck | ||||
067 | 266809-2@141 | 0.83 | 1.00 | |
Plus disponible, pas de remplacement | ||||
068 | 163272-9@141 | |||
Vastzetschroef M6X40 * | ||||
069 | 251872-8@141 | 2.05 | 2.46 | |
Pen 5 * | ||||
070 | 263003-7@141 | 0.83 | 1.00 | |
Bout M6 Ls0810 * | ||||
071 | 322051-6@141 | 4.58 | 5.50 | |
Veerring 6 A | ||||
072 | 253903-9@141 | 0.83 | 1.00 | |
Sluitring 6x12mm | ||||
073 | 941151-9@141 | 0.83 | 1.00 | |
Plus disponible, pas de remplacement | ||||
074 | 414232-7@141 | |||
Geleide-plaat nw laag | ||||
075 | 414233-5@141 | 3.55 | 4.26 | |
Geleide-plaat nw laag | ||||
075A | 414233-5@141 | 3.55 | 4.26 | |
Stalen kogel 7.9 | ||||
076 | 216004-4@141 | 0.83 | 1.00 | |
Drukveer 5.5 | ||||
077 | 231038-6@141 | 0.83 | 1.00 | |
Sluitring 5mm DSP601 A | ||||
078 | 253414-4@141 | 0.83 | 1.00 | |
Inbusbout Ck M5x25mm | ||||
079 | 922241-7@141 | 0.83 | 1.00 | |
Draaitafel Ls0810 * | ||||
080 | 315868-4@141 | 53.39 | 64.07 | |
Viltstuk Ls0810 * | ||||
081 | 443067-9@141 | 1.01 | 1.21 | |
Schroef M4x12 | ||||
082 | 251314-2@141 | 0.83 | 1.00 | |
Pas d'informations disponibles, non commandable | ||||
083 | 342948-3@141 | |||
Schroef 5x25 | ||||
084 | 911241-2@141 | 0.83 | 1.00 | |
Drukveer 5.5 | ||||
085 | 231038-6@141 | 0.83 | 1.00 | |
Zeskant moer M4 | ||||
086 | 931102-0@141 | 0.83 | 1.00 | |
Verzonken schroef 5x18 | ||||
087 | 912227-9@141 | 0.83 | 1.00 | |
Sluitring 7 | ||||
088 | 253930-6@141 | 1.27 | 1.52 | |
Pied | ||||
089 | 154909-9@141 | 35.99 | 43.19 | |
Inzaagstuk | ||||
090 | 410645-0@141 | 1.51 | 1.81 | |
Inzaagstuk | ||||
091 | 410645-0@141 | 1.51 | 1.81 | |
Inbusbout M6x55 | ||||
092 | 922376-4@141 | 1.21 | 1.45 | |
Sluitring 6x12mm | ||||
093 | 941151-9@141 | 0.83 | 1.00 | |
Sluitring 8x0,5mm | ||||
094 | 253139-0@141 | 0.83 | 1.00 | |
Veldsteun Ls0810 Nieuw * | ||||
095 | 632675-3@141 | 4.81 | 5.77 | |
Vleugelmoer M6 * | ||||
400 | 252628-2@141 | 2.80 | 3.36 | |
Pas d'informations disponibles, non commandable | ||||
401 | 164806-1@141 | |||
Pas d'informations disponibles, non commandable | ||||
402 | 271271-8@141 | |||
Stofzak "linnen" | ||||
404 | 122351-2@141 | 6.31 | 7.57 | |
Dopsleutel 9mm | ||||
406 | 782209-3@141 | 2.81 | 3.37 | |
Pas d'informations disponibles, non commandable | ||||
407 | A-81789@141 | |||
Pas d'informations disponibles, non commandable | ||||
408 | 122344-9@141 | |||
Deblokkeerhandel | ||||
900 | 164837-0@141 | 7.44 | 8.93 | |
Stopring E-5 | ||||
901 | 961018-5@141 | 0.83 | 1.00 | |
Drukveer 6 | ||||
902 | 231223-1@141 | 0.83 | 1.00 | |
Pen 12 | ||||
903 | 322110-6@141 | 4.09 | 4.91 | |
Arm Comp Ls0810 * | ||||
904 | 152311-0@141 | 49.85 | 59.82 |
