Vous trouverez ici toutes les pièces et dessins disponibles du 'Makita PLM4810'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

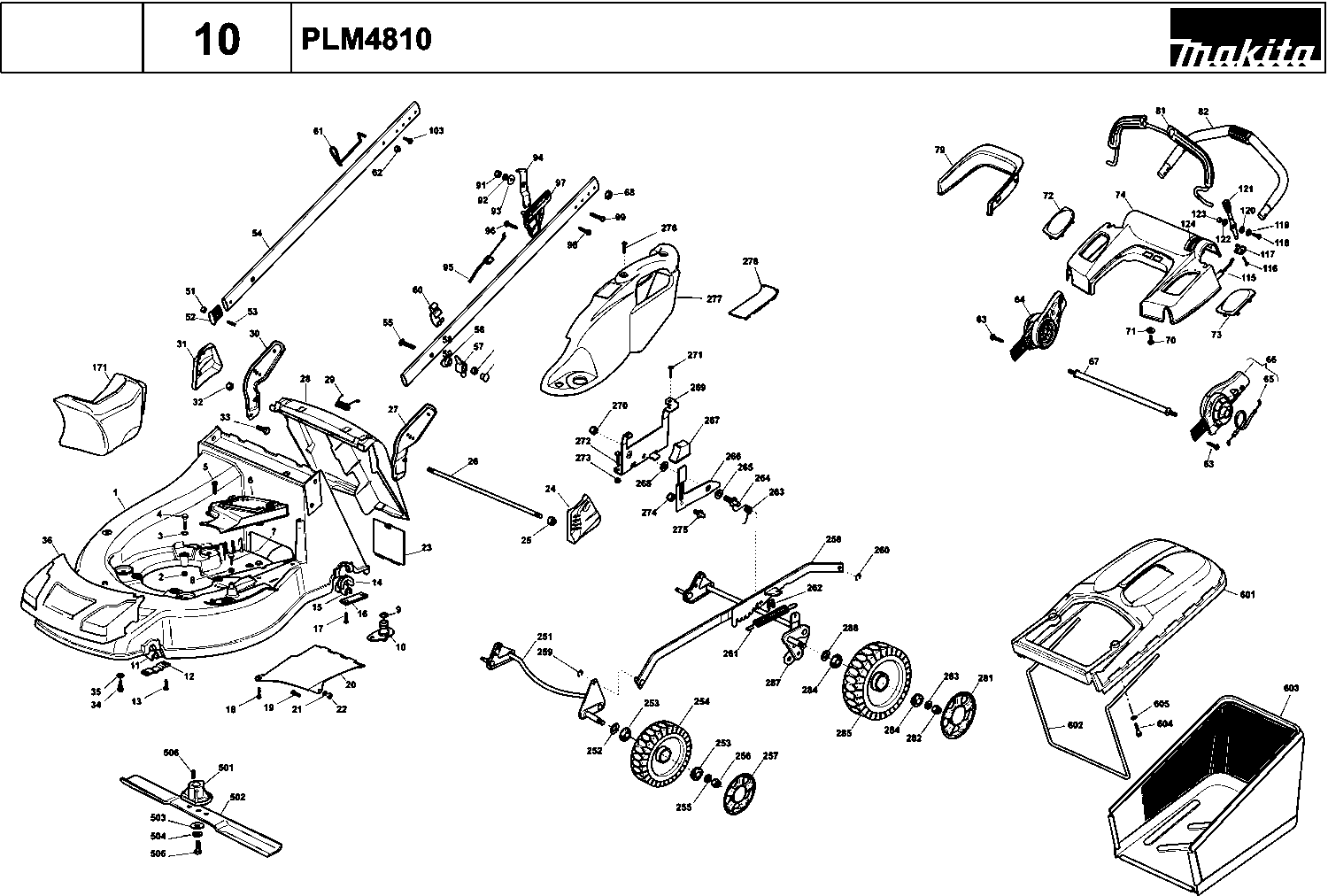

Dessins des Makita PLM4810
Liste de pièces de rechange des Makita PLM4810
Pos. | Description | Prix hors TVA | Prix TTC | |
Les prix affichés incluent la TVA | ||||
Maaidek aluminium | ||||
001 | 664003515@141 | 734.49 | 881.39 | |
Moer tbv Maaidek | ||||
002 | 664155000@141 | 1.80 | 2.16 | |
Revet | ||||
003 | 664521350@141 | 1.80 | 2.16 | |
Vis | ||||
004 | 664691800@141 | 2.45 | 2.94 | |
Schroef Plm5110 * | ||||
005 | 664728522@141 | 2.45 | 2.94 | |
Protecteur | ||||
006 | 664060221@141 | 17.92 | 21.50 | |
Schroef Plm5110 * | ||||
007 | 664729600@141 | 2.45 | 2.94 | |
Revet Um332 * | ||||
008 | 664523040@141 | 1.24 | 1.49 | |
Joint Torique | ||||
009 | 664035000@141 | 16.13 | 19.36 | |
Slangaansluiting | ||||
010 | 664034000@141 | 3.20 | 3.84 | |
Douille | ||||
011 | 664038400@141 | 5.87 | 7.04 | |
Tole De Construction | ||||
012 | 664545156@141 | 2.45 | 2.94 | |
Vis | ||||
013 | 664731350@141 | 2.45 | 2.94 | |
Douille | ||||
014 | 664038407@141 | 3.65 | 4.38 | |
Douille | ||||
015 | 664038399@141 | 4.81 | 5.77 | |
Tole De Construction | ||||
016 | 664545145@141 | 3.55 | 4.26 | |
Vis | ||||
017 | 664731350@141 | 2.45 | 2.94 | |
Schroef Plm5110 * | ||||
018 | 664729600@141 | 2.45 | 2.94 | |
Vis | ||||
019 | 664789000@141 | 2.45 | 2.94 | |
Tole De Construction | ||||
020 | 664108205@141 | 34.35 | 41.22 | |
Revet | ||||
021 | 664523020@141 | 2.45 | 2.94 | |
Moer tbv Hoogtv. | ||||
022 | 664154330@141 | 1.43 | 1.72 | |
Uitwerpdeksel | ||||
023 | 664595352@141 | 8.52 | 10.22 | |
Beschermkap "l" | ||||
024 | 664601003@141 | 10.84 | 13.01 | |
Moer tbv Maaidek | ||||
025 | 664155000@141 | 1.80 | 2.16 | |
Goupille | ||||
026 | 664517856@141 | 16.13 | 19.36 | |
Beugel L Plm5110 | ||||
027 | 664778397@141 | 38.88 | 46.66 | |
Uitwerpdeksel | ||||
028 | 664008050@141 | 78.32 | 93.98 | |
Veer tbv uitwerpdeksel | ||||
029 | 664451000@141 | 10.84 | 13.01 | |
Beugel R Plm5110 | ||||
030 | 664778396@141 | 38.88 | 46.66 | |
Beschermkap "r" | ||||
031 | 664601002@141 | 10.84 | 13.01 | |
Moer tbv Maaidek | ||||
032 | 664155000@141 | 1.80 | 2.16 | |
Schroef Plm5110 * | ||||
033 | 664793301@141 | 2.80 | 3.36 | |
Plus disponible, pas de remplacement | ||||
034 | 664735402@141 | |||
Revet Um332 * | ||||
035 | 664523040@141 | 1.24 | 1.49 | |
Frontpaneel | ||||
036 | 664226109@141 | 30.23 | 36.28 | |
Moer tbv Afstelling | ||||
051 | 664154510@141 | 1.80 | 2.16 | |
Couvercle | ||||
052 | 664820071@141 | 4.57 | 5.48 | |
Schroef Tbv Duwboom Plm5110 * | ||||
053 | 664789450@141 | 12.55 | 15.06 | |
Duwboom R-l onder | ||||
054 | 664498105@141 | 101.18 | 121.42 | |
Vis | ||||
055 | 664819110@141 | 3.20 | 3.84 | |
Revet | ||||
056 | 664680012@141 | 2.44 | 2.93 | |
Sterknop tbv duwboom | ||||
057 | 664399821@141 | 2.16 | 2.59 | |
Pas d'informations disponibles, non commandable | ||||
058 | 664293200@141 | |||
Pas d'informations disponibles, non commandable | ||||
059 | 664820072@141 | |||
Kabelgeleider | ||||
060 | 664192003@141 | 4.09 | 4.91 | |
Kabelgeleider | ||||
061 | 664430316@141 | 26.11 | 31.33 | |
Moer tbv Hoogtv. | ||||
062 | 664154330@141 | 1.43 | 1.72 | |
Vis | ||||
063 | 664728692@141 | 5.46 | 6.55 | |
Kniestuk Re | ||||
064 | 664745001@141 | 94.93 | 113.92 | |
Remkabel 30cm | ||||
065A | 664000750@141 | 43.02 | 51.62 | |
Plus disponible, pas de remplacement | ||||
065B | 664000759@141 | |||
Pas d'informations disponibles, non commandable | ||||
066 | 664745002@141 | |||
Verstevigingspen | ||||
067 | 664999537@141 | 34.36 | 41.23 | |
Moer tbv Maaidek | ||||
068 | 664293201@141 | 2.93 | 3.52 | |
Vis | ||||
070 | 664728691@141 | 0.83 | 1.00 | |
Revet Um332 * | ||||
071 | 664523040@141 | 1.24 | 1.49 | |
Capot de recouvrement | ||||
072 | 664557161@141 | 5.24 | 6.29 | |
Capot de recouvrement | ||||
073 | 664557162@141 | 8.52 | 10.22 | |
Bedieningspaneel | ||||
074 | 664120186@141 | 43.10 | 51.72 | |
Capot de recouvrement | ||||
079 | 664109544@141 | 16.13 | 19.36 | |
Handel motorrem | ||||
081 | 664003325@141 | 84.94 | 101.93 | |
Duwbeugel | ||||
082 | 664006670@141 | 94.93 | 113.92 | |
Moer tbv Hoogtv. | ||||
091 | 664154330@141 | 1.43 | 1.72 | |
Revet | ||||
092 | 664523020@141 | 2.45 | 2.94 | |
Revet Plm5110 * | ||||
093 | 664680013@141 | 2.80 | 3.36 | |
Pas d'informations disponibles, non commandable | ||||
094 | 664551657@141 | |||
Kabel Motorrem Plm5110 B&S | ||||
095 | 664000751@141 | 52.21 | 62.65 | |
Vis | ||||
096 | 664728527@141 | 11.19 | 13.43 | |
Geleider Plm5110 * | ||||
097 | 664785231@141 | 11.16 | 13.39 | |
Schroef Plm5110 * | ||||
098 | 664728702@141 | 5.87 | 7.04 | |
Schroef Plm5110 * | ||||
099 | 664727797@141 | 5.88 | 7.06 | |
Schroef Plm4810 * | ||||
103 | 664728526@141 | 2.45 | 2.94 | |
Gashandel+kabel | ||||
115 | 664007080@141 | 20.76 | 24.91 | |
Vis | ||||
116 | 664735105@141 | 2.45 | 2.94 | |
Afstelplaat | ||||
117 | 664981467@141 | 2.45 | 2.94 | |
Vis | ||||
118 | 664791500@141 | 2.05 | 2.46 | |
Rondelle Elastique | ||||
119 | 664530060@141 | 2.45 | 2.94 | |
Revet Um332 * | ||||
120 | 664523040@141 | 1.24 | 1.49 | |
Gashandel | ||||
121 | 664007225@141 | 16.13 | 19.36 | |
Revet Um332 * | ||||
122 | 664523040@141 | 1.24 | 1.49 | |
Moer tbv Afstelling | ||||
123 | 664154510@141 | 1.80 | 2.16 | |
Label (gashandel) | ||||
124 | 664361912@141 | 9.54 | 11.45 | |
Pas d'informations disponibles, non commandable | ||||
171 | 664140224@141 | |||
Voorwielas | ||||
251 | 664002801@141 | 78.32 | 93.98 | |
Rondelle Elastique | ||||
252 | 664530150@141 | 2.05 | 2.46 | |
Glijlager tbv achterw. | ||||
253 | 664122200@141 | 5.22 | 6.26 | |
Voorwiel 170mm | ||||
254 | 664007317@141 | 28.73 | 34.48 | |
Revet | ||||
255 | 664521350@141 | 1.80 | 2.16 | |
Moer tbv Maaidek | ||||
256 | 664155000@141 | 1.80 | 2.16 | |
Voorwielafdekkap | ||||
257 | 664110505@141 | 5.87 | 7.04 | |
Stang H-verstelling | ||||
258 | 664001137@141 | 89.94 | 107.93 | |
Borgring tbv pin | ||||
259 | 664000930@141 | 5.24 | 6.29 | |
Borgring tbv pin | ||||
260 | 664000930@141 | 5.24 | 6.29 | |
Veer tbv H-verst. | ||||
261 | 664446180@141 | 5.87 | 7.04 | |
Plaque | ||||
262 | 664436050@141 | 5.24 | 6.29 | |
Veer tbv H-verst. | ||||
263 | 664446176@141 | 10.84 | 13.01 | |
Broche | ||||
264 | 664517880@141 | 14.24 | 17.09 | |
Bague | ||||
265 | 664672152@141 | 2.08 | 2.50 | |
Hendel H-verstelling | ||||
266 | 664322829@141 | 9.54 | 11.45 | |
Drukknopkap | ||||
267 | 664602000@141 | 2.80 | 3.36 | |
Bague | ||||
268 | 664672151@141 | 2.45 | 2.94 | |
Tole De Construction | ||||
269 | 664785115@141 | 21.87 | 26.24 | |
Moer tbv Maaidek | ||||
270 | 664155000@141 | 1.80 | 2.16 | |
Schroef Plm5110 * | ||||
271 | 664729600@141 | 2.45 | 2.94 | |
Bout Tbv Mes Um480 * | ||||
272 | 664793101@141 | 2.05 | 2.46 | |
Moer tbv Maaidek | ||||
273 | 664293201@141 | 2.93 | 3.52 | |
Moer tbv Afstelling | ||||
274 | 664154510@141 | 1.80 | 2.16 | |
Goupille | ||||
275 | 664519746@141 | 8.52 | 10.22 | |
Schroef Plm5110 * | ||||
276 | 664728520@141 | 2.45 | 2.94 | |
Dek H-verst. | ||||
277 | 664060146@141 | 14.24 | 17.09 | |
Plaque De Recouvrement | ||||
278 | 664546070@141 | 2.80 | 3.36 | |
Achterwielafdekkap | ||||
281 | 664110506@141 | 7.43 | 8.92 | |
Moer tbv Maaidek | ||||
282 | 664155000@141 | 1.80 | 2.16 | |
Revet | ||||
283 | 664521350@141 | 1.80 | 2.16 | |
Glijlager tbv achterw. | ||||
284 | 664122200@141 | 5.22 | 6.26 | |
Roue arrière | ||||
285 | 664007318@141 | 46.31 | 55.57 | |
Rondelle Elastique | ||||
286 | 664530150@141 | 2.05 | 2.46 | |
As tbv achterwiel | ||||
287 | 664002804@141 | 108.68 | 130.42 | |
Meshouder Eum430 | ||||
501 | 664463012@141 | 23.75 | 28.50 | |
Pas d'informations disponibles, non commandable | ||||
502 | 664004366@141 | |||
Veerring meshouder | ||||
503 | 664160400@141 | 5.46 | 6.55 | |
Revet tbv meshouder | ||||
504 | 664523080@141 | 1.80 | 2.16 | |
Mesbout | ||||
505 | 664735698@141 | 4.58 | 5.50 | |
Spie Eum430 | ||||
506 | 664139100@141 | 1.80 | 2.16 | |
Deksel tbv grasvangzak | ||||
601 | 664486102@141 | 79.95 | 95.94 | |
Frame tbv grasvangzak | ||||
602 | 664608526@141 | 43.10 | 51.72 | |
Grasvangzak | ||||
603 | 664002212@141 | 181.13 | 217.36 | |
Vis | ||||
604 | 664728680@141 | 2.45 | 2.94 | |
Revet | ||||
605 | 664523050@141 | 2.05 | 2.46 |
