Dessins techniques et pièces de rechange Makita UC3551A

Type exact:
UC3551A
UC3551A

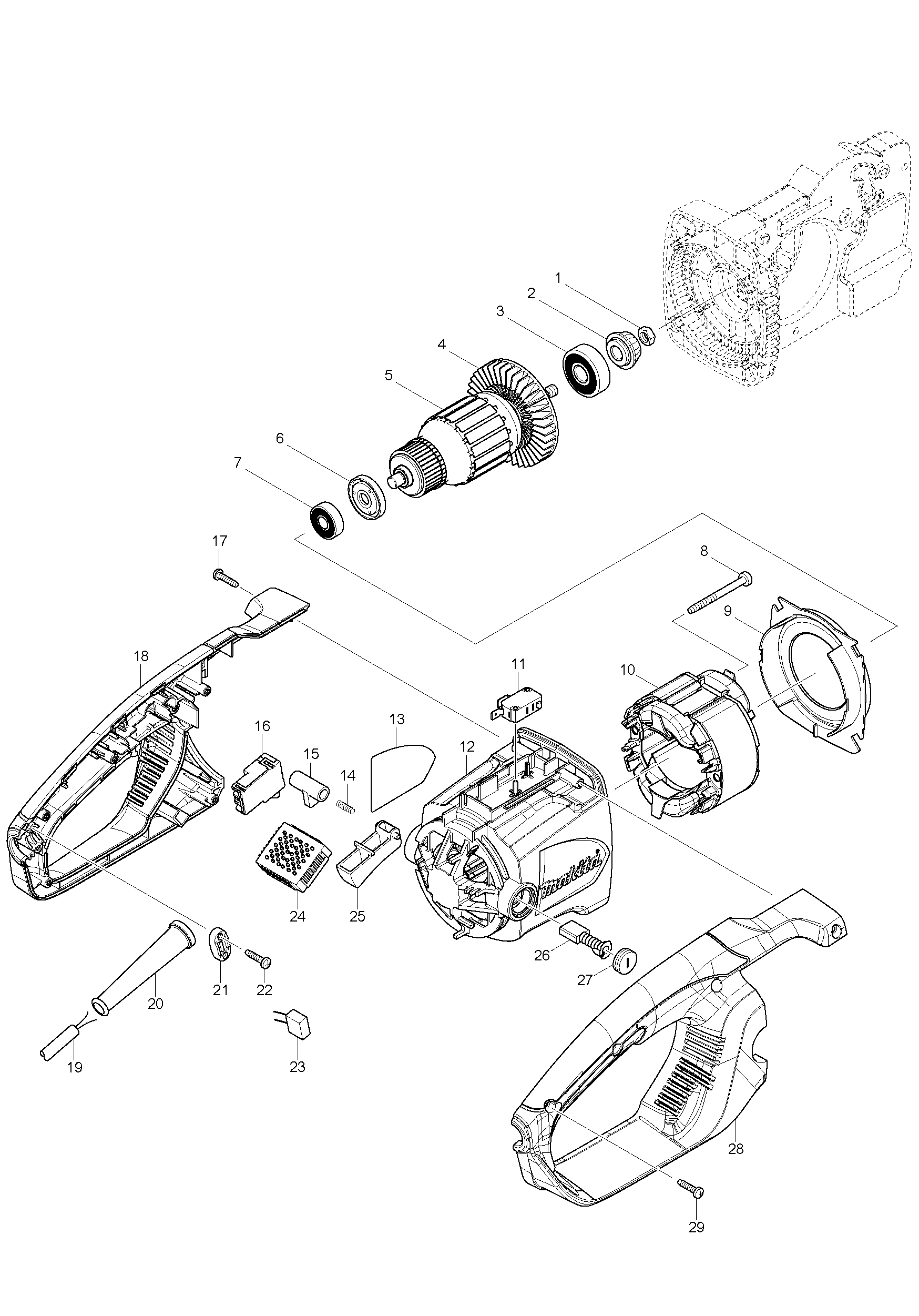

Dessins des MAKITA UC3551A
Liste de pièces de rechange des MAKITA UC3551A
Sur cette page, vous pouvez ajouter des pièces de rechange à votre panier en sélectionnant la quantité désirée et en cliquant sur le bouton derrière. Si vous avez terminé votre sélection, veuillez activer le bouton "Votre panier" en bas de la page. Les prix mentionnés ci-dessous sont TTC. Le montant exact de la TVA est calculé dans le panier en fonction du pays dans lequel vous souhaitez recevoir le colis.
Zeskant moer M8 | ||||
001 | 931403-6 | Zeskant moer M8 | € 1.00 | |
Tandwiel 12 | ||||
002 | 227626-5 | Tandwiel 12 | € 6.62 | |
Kogellager 6301llb | ||||
003 | 211132-0 | Kogellager 6301llb | € 9.58 | |
Waaier 80 | ||||
004 | 240003-4 | Waaier 80 | € 3.24 | |
Induit 240v | ||||
005 | 517904-4 | Induit 240v | € 37.36 | |
Isoleerring Uc35/40/4530A A | ||||
006 | 681666-1 | Isoleerring Uc35/40/4530A A | € 1.01 | |
Kogellager 629Zz A | ||||
007 | 210084-2 | Kogellager 629Zz A | € 1.22 | |
Tapschroef Pt 5X55 Hr5001C A | ||||
008 | 266095-5 | Tapschroef Pt 5X55 Hr5001C A | € 1.01 | |
Épuisé | ||||
009 | 419410-4 | Épuisé | ||
Inducteur | ||||
010 | 636394-3 | Inducteur | € 34.58 | |
Commutateur | ||||
011 | 650577-1 | Commutateur | € 2.09 | |
Carter De Moteur | ||||
012 | 142348-5 | Carter De Moteur | € 13.82 | |
012A | 643536-2 | € 3.24 | ||
Naamplaat "uc3551" | ||||
013 | 815F99-6 | Naamplaat "uc3551" | € 2.81 | |
Drukveer 4 | ||||
014 | 233173-6 | Drukveer 4 | € 1.00 | |
Dodemansknop | ||||
015 | 416178-3 | Dodemansknop | € 1.00 | |
Schakelaar Tgc30b | ||||
016 | 650717-1 | Schakelaar Tgc30b | € 8.50 | |
Tapschroef 4x18 | ||||
017 | 265995-6 | Tapschroef 4x18 | € 1.00 | |
Jeu De Poignees | ||||
018 | 187901-0 | Jeu De Poignees | € 13.82 | |
Etiquette Info. | ||||
018A | 802G51-9 | Etiquette Info. | € 2.81 | |
Netsnoer m/steker | ||||
019 | 665894-6 | Netsnoer m/steker | € 13.82 | |
Kabeltule 10-90 | ||||
020 | 682505-8 | Kabeltule 10-90 | € 1.73 | |
Klemstrip | ||||
021 | 687124-5 | Klemstrip | € 1.00 | |
Tapschroef 4x18 | ||||
022 | 265995-6 | Tapschroef 4x18 | € 1.00 | |
Condensator 0,1uf | ||||
023 | 645105-5 | Condensator 0,1uf | € 2.81 | |
Controle unit | ||||
024 | 631719-6 | Controle unit | € 70.62 | |
Schakelknop A/u | ||||
025 | 419411-2 | Schakelknop A/u | € 5.26 | |
Koolborstel set Cb-153 | ||||
026 | 181044-0 | Koolborstel set Cb-153 | € 4.10 | |
Koolborstelhouderdop | ||||
027 | 643650-4 | Koolborstelhouderdop | € 1.00 | |
Jeu De Poignees | ||||
028 | 187901-0 | Jeu De Poignees | € 13.82 | |
Etiquette Info. | ||||
028A | 802G51-9 | Etiquette Info. | € 2.81 | |
Tapschroef 4x18 | ||||
029 | 265995-6 | Tapschroef 4x18 | € 1.00 | |
Tankdop | ||||
030 | 142282-9 | Tankdop | € 3.67 | |
Palier | ||||
031 | 454822-4 | Palier | € 3.67 | |
Joint | ||||
032 | 421959-2 | Joint | € 1.44 | |
Reservoir D’huile | ||||
033 | 454826-6 | Reservoir D’huile | € 1.44 | |
Verbindingsstuk "b" | ||||
034 | 424611-1 | Verbindingsstuk "b" | € 1.01 | |
Verbindingsstuk "a" | ||||
035 | 424610-3 | Verbindingsstuk "a" | € 1.01 | |
Ressort De Compression | ||||
036 | 231975-4 | Ressort De Compression | € 1.00 | |
Capot de recouvrement | ||||
037 | 416274-7 | Capot de recouvrement | € 1.00 | |
Épuisé | ||||
038 | 454825-8 | Épuisé | ||
Veer voor handbescherming | ||||
039 | 233174-4 | Veer voor handbescherming | € 1.22 | |
Protection des mains | ||||
040 | 142341-9 | Protection des mains | € 4.61 | |
Indicatielabel | ||||
040A | 802K54-7 | Indicatielabel | € 2.81 | |
Rembandhouder | ||||
041 | 158044-5 | Rembandhouder | € 8.50 | |
Ressort | ||||
042 | 234005-0 | Ressort | € 1.73 | |
O-ring 6 | ||||
043 | 213017-6 | O-ring 6 | € 1.00 | |
Carter | ||||
044 | 454821-6 | Carter | € 8.50 | |
Tapschroef 5x25 | ||||
045 | 266041-8 | Tapschroef 5x25 | € 1.00 | |
Kogellager 606Zz A | ||||
046 | 210137-7 | Kogellager 606Zz A | € 1.01 | |
Borgring S-10 | ||||
047 | 961006-2 | Borgring S-10 | € 1.00 | |
Wormwiel DUC353 | ||||
048 | 221427-3 | Wormwiel DUC353 | € 2.81 | |
Épuisé | ||||
049 | 196419-0 | Épuisé | ||
Bague | ||||
050 | 424612-9 | Bague | € 1.00 | |
Tapschroef 4x18 | ||||
051 | 265995-6 | Tapschroef 4x18 | € 1.00 | |
Tandwiel 37 | ||||
052 | 227627-3 | Tandwiel 37 | € 8.50 | |
Arbre | ||||
053 | 326373-6 | Arbre | € 4.61 | |
Kogellager 6001zz | ||||
054 | 211148-5 | Kogellager 6001zz | € 8.50 | |
Poignee | ||||
055 | 454823-2 | Poignee | € 9.58 | |
Tapschroef 5x25 | ||||
056 | 266041-8 | Tapschroef 5x25 | € 1.00 | |
Boomaanslag | ||||
057 | 345651-5 | Boomaanslag | € 2.81 | |
Tapschroef 5x25 | ||||
058 | 266041-8 | Tapschroef 5x25 | € 1.00 | |
Logement De Palier | ||||
059 | 319091-3 | Logement De Palier | € 16.18 | |
Tapschroef 5x60mm | ||||
060 | 266044-2 | Tapschroef 5x60mm | € 1.73 | |
Sluitring 4 | ||||
061 | 267195-4 | Sluitring 4 | € 1.00 | |
Tapschroef M4x12mm Ck | ||||
062 | 266026-4 | Tapschroef M4x12mm Ck | € 1.00 | |
Remband | ||||
063 | 168426-3 | Remband | € 10.87 | |
Koppelingstrom.Uc35/40/4530A A | ||||
064 | 123886-6 | Koppelingstrom.Uc35/40/4530A A | € 23.89 | |
Sluitring 8 x 14 X 0,5mm | ||||
065 | 253215-0 | Sluitring 8 x 14 X 0,5mm | € 1.00 | |
Stop Ring A | ||||
066 | 927306000 | Stop Ring A | € 1.00 | |
Tapschroef 4X12 Ms246.4 | ||||
067 | 266427-6 | Tapschroef 4X12 Ms246.4 | € 1.00 | |
Capot de recouvrement | ||||
068 | 454818-5 | Capot de recouvrement | € 1.00 | |
Tandwiel 14 | ||||
069 | 227496-2 | Tandwiel 14 | € 4.10 | |
Vis De Reglage | ||||
070 | 326372-8 | Vis De Reglage | € 1.00 | |
Stelpin | ||||
071 | 326310-0 | Stelpin | € 1.01 | |
Tapschroef 4X12 Ms246.4 | ||||
072 | 266427-6 | Tapschroef 4X12 Ms246.4 | € 1.00 | |
Zijkap assy | ||||
073 | 183B54-5 | Zijkap assy | € 18.02 | |
Rubber pen 4 | ||||
075 | 263002-9 | Rubber pen 4 | € 1.00 | |
Arbre D’entrainement | ||||
076 | 142665-3 | Arbre D’entrainement | € 3.67 | |
Afdekring | ||||
077 | 454819-3 | Afdekring | € 1.01 | |
Snelspanwartel | ||||
078 | 142235-8 | Snelspanwartel | € 5.90 | |
Slangklem | ||||
081 | 324685-1 | Slangklem | € 1.22 |
