Vous trouverez ici toutes les pièces et dessins disponibles du 'Makita VC3012M'. De là, vous pouvez commander directement toutes les pièces souhaitées. De nombreuses pièces doivent être commandées auprès du fabricant, selon la marque, cela prend une à quatre semaines. Toutes les informations dont nous disposons se trouvent sur notre site Web, nous ne pouvons pas vous conseiller sur ce dont vous avez besoin, pour cela vous devrez retourner la machine pour réparation. Veuillez noter ce qui suit lors de la commande:

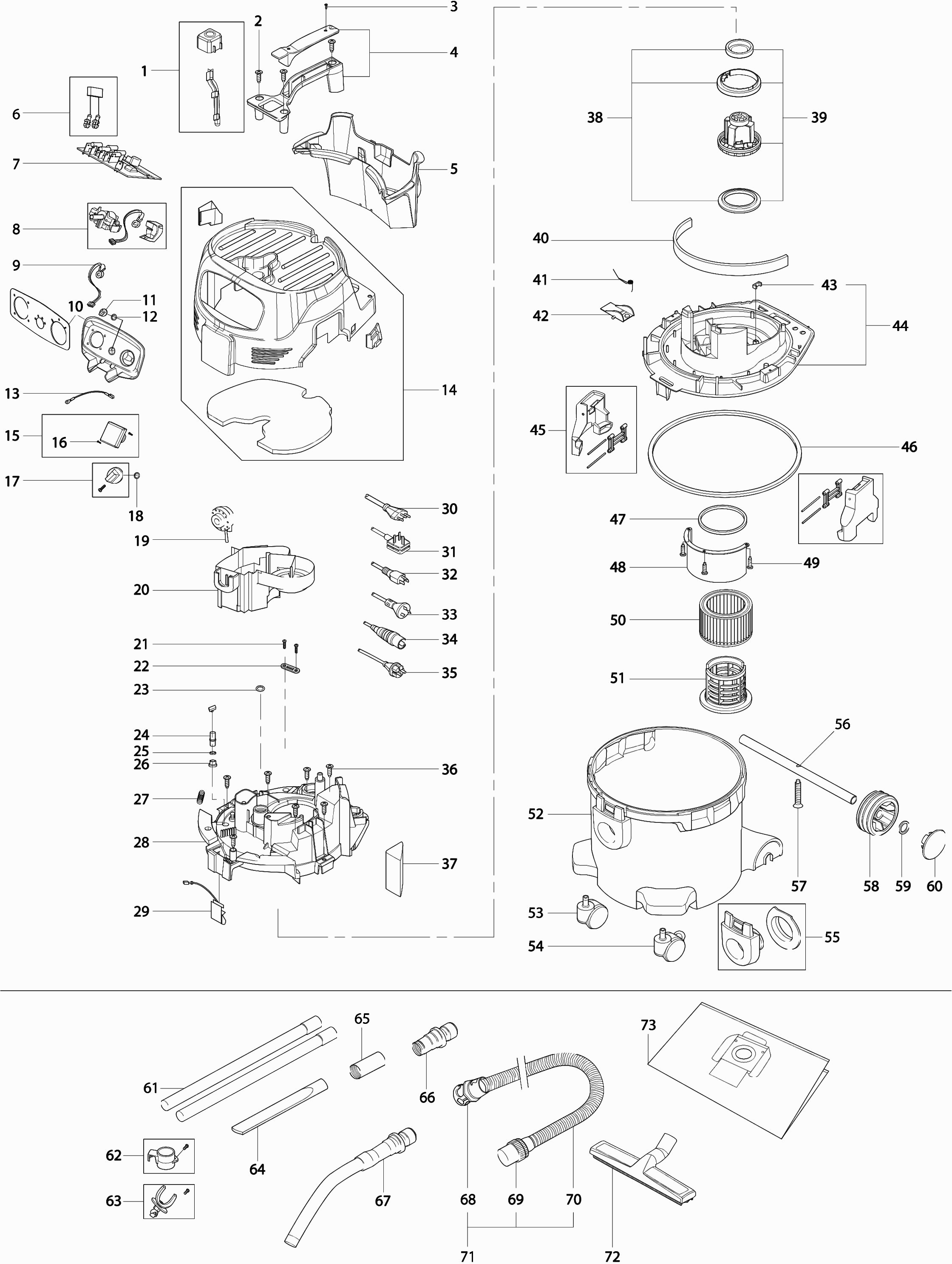

Dessins des Makita VC3012M
Liste de pièces de rechange des Makita VC3012M
| Pos. | Description | Prix hors TVA | Prix TTC | |
| Les prix affichés incluent la TVA | ||||
| Filterreinigingsknop | ||||
| 001 | W107417282 | 12.55 | 15.06 | |
| Schroef 5x18mm | ||||
| 002 | W302004029 | 6.58 | 7.90 | |
| Schroef 3,5x18mm | ||||
| 003 | W302004032 | 5.87 | 7.04 | |
| Poignee | ||||
| 004 | W302004019 | 39.92 | 47.90 | |
| Opbergbakje Vc3012L | ||||
| 005 | W302004026 | 14.53 | 17.44 | |
| Condensator 0,1uf | ||||
| 006 | W107404542 | 17.92 | 21.50 | |
| Circuit | ||||
| 007 | W107400491 | 254.83 | 305.80 | |
| Circuit | ||||
| 007-1 | W107418425 | 254.83 | 305.80 | |
| Schakelknop | ||||
| 008 | W107413449 | 61.09 | 73.31 | |
| Weerstandsmeter Kit | ||||
| 009 | W107415024 | 12.58 | 15.10 | |
| Weerstandsmeter | ||||
| 009 | W302000429 | 34.35 | 41.22 | |
| Schakelknop | ||||
| 010 | W107418011 | 34.35 | 41.22 | |
| Schakelknop | ||||
| 011 | W107400575 | 36.20 | 43.44 | |
| O-ring 21x1,5 | ||||
| 012 | W107400576 | 16.13 | 19.36 | |
| Draad 1 x150 gr/ye | ||||
| 013 | W107400264 | 14.24 | 17.09 | |
| Deksel Makita | ||||
| 014 | W107417284 | 79.95 | 95.94 | |
| Stopcontact + voorplaat | ||||
| 015 | W302004034 | 34.36 | 41.23 | |
| Schroef 3,5x18mm | ||||
| 016 | W302004032 | 5.87 | 7.04 | |
| Schakelknop | ||||
| 017 | W909100222 | 6.58 | 7.90 | |
| Joint | ||||
| 018 | W9868 | 4.09 | 4.91 | |
| Buzzer Vc3012M | ||||
| 019 | W107416958 | 28.73 | 34.48 | |
| Luchtvoering | ||||
| 020 | W302004015 | 23.74 | 28.49 | |
| Schroef 3,5x18mm | ||||
| 021 | W302004032 | 5.87 | 7.04 | |
| Draagkoord | ||||
| 022 | W302004030 | 9.54 | 11.45 | |
| O-ring 25 | ||||
| 023 | W302004061 | 8.52 | 10.22 | |
| STROMINGSSENSOR VC3012M | ||||
| 024 | W107416952 | 101.18 | 121.42 | |
| Rubberring | ||||
| 025 | W55416 | 4.09 | 4.91 | |
| Slangklem | ||||
| 026 | W107400578 | 11.19 | 13.43 | |
| Verdeler | ||||
| 027 | W302004031 | 12.55 | 15.06 | |
| Bovenhuis | ||||
| 028 | W302004009 | 53.39 | 64.07 | |
| Kontaktveer | ||||
| 029 | W302004023 | 17.92 | 21.50 | |
| Netsnoer 3x1,5 7,5mtr 446L A | ||||
| 035 | W107400573 | 65.59 | 78.71 | |
| Schroef 5x18mm | ||||
| 036 | W302004029 | 6.58 | 7.90 | |
| Isolatieplaat (geluid) | ||||
| 037 | W302004045 | 19.88 | 23.86 | |
| Motorlagerring | ||||
| 038 | W302003385 | 28.73 | 34.48 | |
| Motor 1200w 230v | ||||
| 039 | W302003384 | 143.65 | 172.38 | |
| Plaque Isolante | ||||
| 040 | W302004010 | 12.55 | 15.06 | |
| Ressort | ||||
| 041 | W909100083 | 3.20 | 3.84 | |
| Sluiter | ||||
| 042 | W302000344 | 5.24 | 6.29 | |
| Couvercle | ||||
| 043 | W107401937 | 12.55 | 15.06 | |
| Vanne De Fond | ||||
| 044 | W302004007 | 79.95 | 95.94 | |
| Containerklem | ||||
| 045 | W107400301 | 26.11 | 31.33 | |
| Pakking voor container | ||||
| 046 | W107400056 | 17.92 | 21.50 | |
| Filter pakking | ||||
| 047 | W302000460 | 9.96 | 11.95 | |
| Hitteschild | ||||
| 048 | W302004016 | 21.87 | 26.24 | |
| Schroef 5x18mm | ||||
| 049 | W302004029 | 6.58 | 7.90 | |
| Harmonica PET filter | ||||
| 050 | P-70219 | 25.48 | 30.58 | |
| Filter kast | ||||
| 051 | W107402646 | 26.11 | 31.33 | |
| Opvangcontainer | ||||
| 052 | W107417285 | 89.94 | 107.93 | |
| Épuisé | ||||
| 053 | W46298 | |||
| Zwenkwiel m/rem 50mm | ||||
| 054 | W302000557 | 21.87 | 26.24 | |
| Aansluiting tbv stofzuigslang | ||||
| 055 | W107402742 | 20.76 | 24.91 | |
| Wielas | ||||
| 056 | W302004022 | 21.87 | 26.24 | |
| Schroef 5x35 | ||||
| 057 | W107400063 | 5.88 | 7.06 | |
| Roue arrière | ||||
| 058 | W302000465 | 9.96 | 11.95 | |
| Revet | ||||
| 059 | W47302 | 4.09 | 4.91 | |
| Wieldop | ||||
| 060 | W107417286 | 4.57 | 5.48 | |
| Zuigbuis set RVS | ||||
| 061 | P-70437 | 32.70 | 39.24 | |
| Buizenhouder | ||||
| 062 | W302004027 | 5.93 | 7.12 | |
| Buizenhouder | ||||
| 063 | W302004018 | 7.53 | 9.04 | |
| Kierzuigmond lang zwart | ||||
| 064 | W6084 | 6.31 | 7.57 | |
| Slangadapter 35/25mm ribbed [Machine] | ||||
| 066 | P-70378 | 18.63 | 22.36 | |
| Handvat bocht stofzuiger | ||||
| 067 | P-70346 | 25.48 | 30.58 | |
| Slangadapter 32mm QS [Machine] | ||||
| 068 | W46947 | 19.01 | 22.81 | |
| Slangadapter 32 mm [Stofzuiger] | ||||
| 069 | W30928 | 13.77 | 16.52 | |
| Épuisé | ||||
| 070 | W107417287 | |||
| Zuigslang 32x4000mm | ||||
| 071 | P-84084 | 53.15 | 63.78 | |
| Slangadapter 32mm QS [Machine] | ||||
| 071A | W107417866 | 21.29 | 25.55 | |
| Vloerzuigmond | ||||
| 072 | P-81789 | 15.97 | 19.16 | |
| Harmonica PET filter | ||||
| 073 | P-70219 | 25.48 | 30.58 | |
